-15%

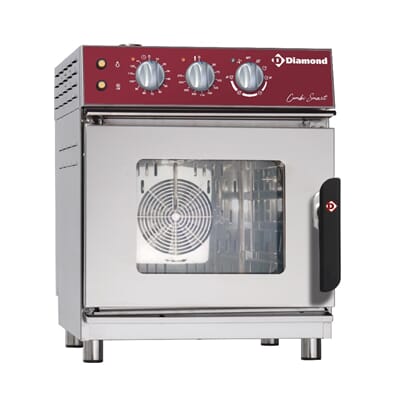

FVS-423 FVS-423_1.jpg

Kombidamper. 4x 2/3-GN. MÅL:53x66xH66CM. 230-400V/3F

Varenr.
FVS-423
Lager
Leveringstid normalt 1-2 uker
Pris
kr 35 649,00 Eks. MVA
Før
kr 41 940,00 Eks. MVA
Rabatt
kr 6 291,00 Eks. MVA
Manuell kombidamper,  med autorevers.

DIAMOND - FVS-423
Kapasitet: 4 x 2/3-GN rist/brett (2/3-GN = 35,3x32,5cm). 1 rist medfølger.
Avstand mellom geiderne er 6 cm. Vifte med autorevers.
Direkte steam-generator og dampkondenseringssystem. Runnede kanter og hjørner.
Fett-filter. Innvendig lys (halogen). Avløp for kondensvann.
Utførelse i rustfritt stål (AISI 430), og innvendig 304 AISI.
Dobbelt glass i dør. Sikkerhetslås. Varselsignal når ferdig. Tidsur. Nedkjølingsprogram.
Kontrollpanelet er montert på toppen som gjør dette til en slankere versjon en standard.

Temperaturer kokeprogram/steam: 50-110°C.
Temperaturer varmluftsprogram/konveksjon: 50-270°C.
Temperaturer kombinasjon steam/konveksjon: 50-270°C.

UK.
PRODUCT DETAILS 4x GN2/3 (353x325 mm)
Standard supplied with 1 grid GN 2/3. 1 Turbine "autorevers" Heating by stainless steel armoured resistance(s),
placed behind the deflector and "direct" steam by "nebulisation". Depth loading, GN plates 1/3 - 1/2 - 2/3 - 1/1,
removable plate holder structure, 67 mm spacing. Easy after-sales service, front access. Baking chamber in AISI 304 stainless steel,
rounded corners and corners (easy maintenance), deep-drawn bottom with discharge. Integrated condensate collection tray (on the door),
directly connected to the discharge. Internal allogenic light. Door with thermal double glazing (reversible), "ventilated" air space between the panes of glass,
allowing the cooling of the outer glass, hinged inner glass (easy maintenance). Automatic door closing,
ergonomic and athermic handle, gasket (removable) placed in the counter door. Microswitch, for stopping the fan(s) when the door is opened Safety thermostat.
"Releasing valve" for the evacuation of smoke and vapour. External construction in AISI 430 stainless steel, with adjustable feet.

THE +
ADVANTAGE : 3 different cooking systems: Convection (hot air) 50°/270° C - Steam 50°/110° C - Mixed convection - steam 50°/270°
C PLUS :  CombiSmart Line: Very compact ovens that combine technology, performance and small footprint. Upper control panel. "Auto-revers" turbines.

Measure: mm
(L x W x H) 523 x 666 x H667
kW : 3
Volt : 230/1N 50-60Hz
kg : 75
M³ : 0,42
