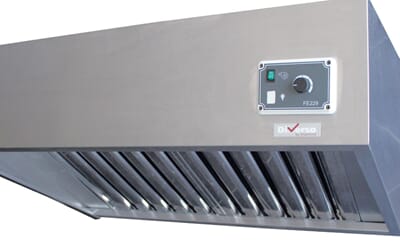

DIAMOND - WR-K107-TV
Avtrekkshette med innebygd "vanntett" motor.
Utført i rustfritt stål AISI 441.
Dreneringskran for fett.
Labyrintfiltre.
Variabel hastigheter.
Luftkapasitet: 1500 m3/t.
Lengde på ventilasjonsrør bør ikke overstige 6 meter.

mm (BxDxH) : 1000x700xh460
kW : 0,17
Volt : 230/1N 50Hz
kg : 40
M³ : 0,7

English:
 Complete hood, (7/7-1500 M3/h) 120 Pa, variator, 2x filters
- 2 labyrinths filters ANTI GREASE (2x 400x500)
- Model with built-in centrifugal fan "watertight" (IP55) incorporated, low energy "Energy Saving".
- Electric case (central position, in vertical).
- Designed in stainless steel AISI 441, assembly by points welding.
- Filters anti-fat has stainless steel labyrinths AISI 430.
- Peripheral channel for the fat collection, fitted with a drainage tap.
- Electronic regulator IP55 (4,5 amp) incorporated on the frontal.

INFO:
- Ventilator motor centrifufal on low energy (Energy saving).
- Maximum evacuation 6 meters channels and 1 bend of 90° = 160Pa.
- PLUG-IN: with power cord, equipped with a plug (150 mm).
Standard: adjustable wall brackets.
