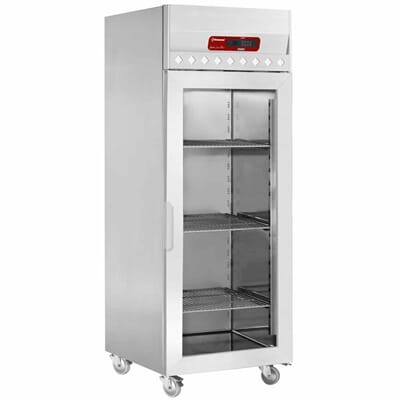

DIAMOND - IE70G/N - GASTRO LINE
Fryseskap med glassdør. Kapasitet på 700 liter.
Inkluderer 3 ristehyller á mål: 53x65cm (2/1-GN).
Innvendige skinner som gjør at man kan ha både rist og kantinebakke på samme skinne. Hjelper å utnytte plassen i skapet (se bilde 2).
Temperaturområde fra -15°C til -22°C.
Rustfritt stål utvendig og innvendig.
Automatisk avrimning og fordampning av tinevann.
Digital termostat styring.
Dør kan leveres hengstet på motsatt side, gi beskjed ved bestilling.
Rundede kanter og hjørner.
Dobbelt isolert glassdør med håndtak. Lukkes med magnet.
Dør kan åpnes til 100° og lukkes automatisk.
Kontollpanel i toppen for enkel tilkomst.
Innvendig belysning, med av /på-bryter.

Vær observant på at konkurrerende merker gjerne har avisningssystem, men ofte ikke har fordampning av tinevann som standard, slik at dette må tømmes manuelt.
Våre modeller har begge deler som standard!

Yttermål: 72x80xh212cm.
0,73 kW. 230V/1-fas.
Vekt: 160 kg.

English:
Ventilated freezer 700 liter, glass door, GN 2/1, on wheels
Energy class: E Certified in climate class 4 "30°C Temperature - 55% Humidity"
Included: 3 GN 2/1 grids (530x650 mm)
Refrigerant R290
Reversible door (NB on specific order)
Counter door with heating resistor
Vacuum valve as standard.
Supplied with 4 wheels, 2 with brakes.
Made of stainless steel (food grade), AISI 304 interior, AISI 441 exterior (treated steel rear, grey in color), monocoque chassis.
Stainless steel racks and slides (antitilt), allowing the grids to be positioned as desired.
Deep-drawn inner bottom and rounded corners and angles (without roughness).
Bottom with drain plug (heavy maintenance).
Glass door (double glazing) with handle (predisposition for key lock), closing by magnetic "pressure" seal (easy replacement, without tools), hinges with 100° stop and closing doors with automatic return.
Micro switch device, allowing the evaporator fan to stop when the door is opened.
Upper panel for accessibility to the compressor unit, hinged, easy inspection.
Compressor unit with tropicalized "Buffer", ventilated condenser.
Ventilated evaporator treated against salt and food acids "coating", completely hidden (not visible).
Refrigerant expansion per capillary.
Electronic controller (in closed, waterproof box), front panel display with blue LED Internal lighting, with switch.
Automatic defrosting of the evaporator, number of defrosting factory program (can be modified as required) Automatic evaporation of condensate.
CFC-free polyurethane insulation (75 mm).
The device is built in compliance with all applicable standards (CE).

HIGH EFFICIENCY: High efficiency and low energy consumption components CFC-free polyurethane insulation (80 mm = super-insulated), less thermal dispersion, with the key to energy savings.
Refrigeration unit with "Buffer" under insulated, tropicalized box (Climatic class 5 "Ambient temperature +40°C - Relative humidity 40%").
Exceptional performances, and a uniform temperature thanks to the forced channeling of the refrigerated air (100% optimized air flow), guaranteeing the good conservation of the products.
Double slide rails (allowing grating and GN containers at the same time!!!)
Easy to operate thanks to hinges with 100° stop and door closing with automatic return.
Electronic controller (closed box, waterproof) with HACCP functions.
Comes with standard wheels, easy to move for maintenance and after-sales service.
