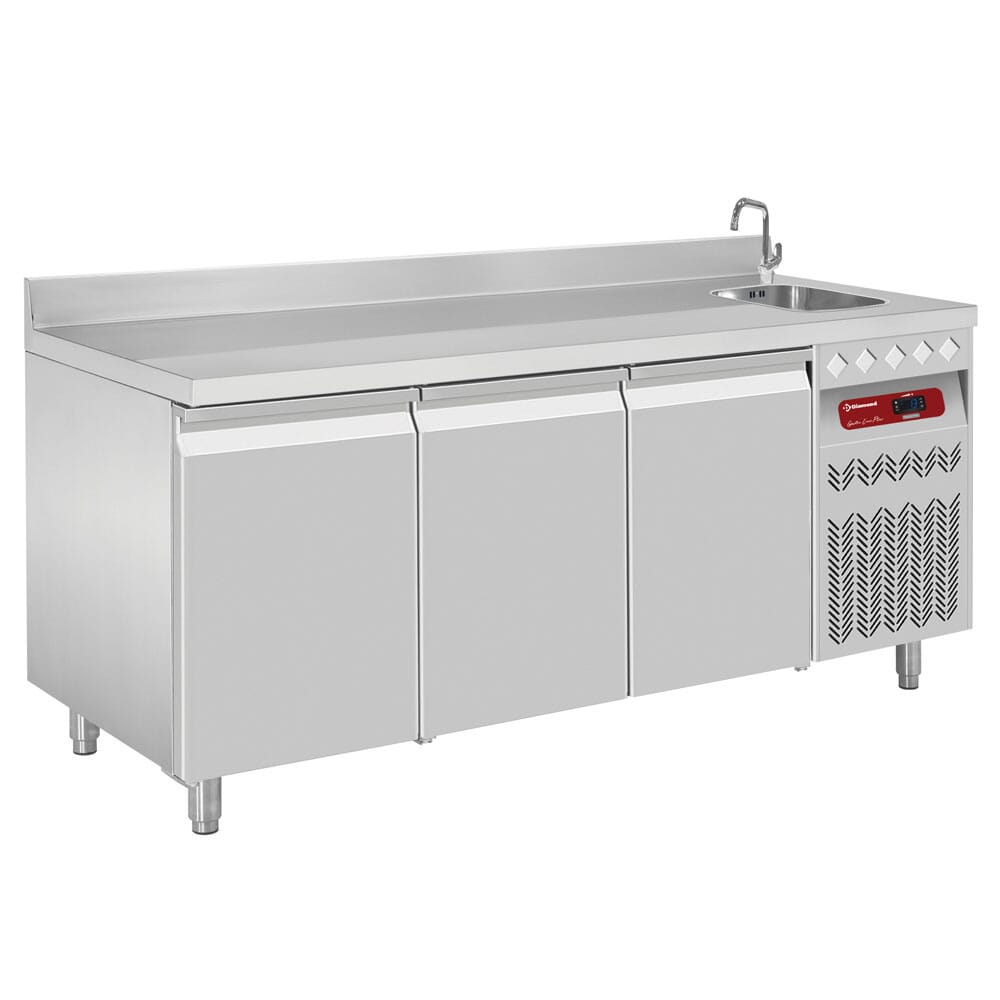

DIAMOND - DT178/R2
Kjølebenk med 3 dører og vask.
Vask 340x400x200mm integrert i benkeplaten.
Kapasitet på 405 liter.
Kjølebenk med 2 ventilerte kjølefordampere.
Automatisk avisning av tinevann.
Rustfritt stål innvendig, med avrundede hjørner.
Produsert i rustfri stål AISI 304.
Dørene holdes inne med magnetlister.
Tilpasset omgivelsestemperatur +40°C.
Fordamperne er overplatebehandlet med belegg, for økt levetid.
Det medfølger 1 stk rist pr. dør (53x32,5cm - 1/1-GN).
Justerbare rustfrie ben.
Digital temperaturkontroll. Temperaturområde:-2 til +8°C.
Kjølemedium R290.

PRODUCT DETAILS
Sink 340x400x200mm integrated in the work top (right side), delivered with a siphon; drain screen and overflow (NB: tap on request, opening on the work top (27 mm)).
"Wall" model with turned-up back edge.
2 ventilated evaporators.
Included: 1 grid GN 1/1 (530x325 mm), per door.
4 adjustable stainless steel feet.
Monocoque design
Manufactured in stainless steel, inside AISI 304, outside AISI 441.
Independent upper top (dismountable), stainless steel AISI 304.
Stainless steel rack and slides (anti-tilting), allowing to place the grids as one pleases.
Stamped interior bottom, rounded angles and corners (without roughness).
Doors with ergonomic handle (no salient) and reversible (kit is not necessary), "snap-fit" closure by magnetic joint (easy replacement without tools), hinge with stop at 100° and closure of the doors with automatic return.
Tropicalized compressor unit climate class 5 (40°C Temperature & 40% Humidity), incorporated in the cabinet (right), ventilated condenser.
Frontal accessibility of the compressor group, easy inspection.
Over-sized evaporator(s), ventilated or static (87% of relative humidity), placed between the doors.
Refrigerant R290.
Electronic regulator (under closed box, waterproof), control front screen with blue LED.
Intern lighting, with switch.
Automatic defrosting of the evaporator, number of defrosting programmed by factory (modifiable at will).
Condenser's automatic evaporation.
Polyurethane insulation without CFC (60

THE +
Double runner slides (allowing grids and trays GN at the same time!!).
Easy work thanks to the hinges with stop at 100° and closure of the doors with automatic recall.
Evaporator treated against the salt and the food acids "coating".
Electronic regulator (under closed box, waterproof).

Mål: (L x D x H) mm: 1795 x 700 x 866/960(+85)
T°: -2°+8°
kW 0.25
Volt: 230/1N 50HZ
Vekt: (Kg): 182
Volum (m³): 1.48
