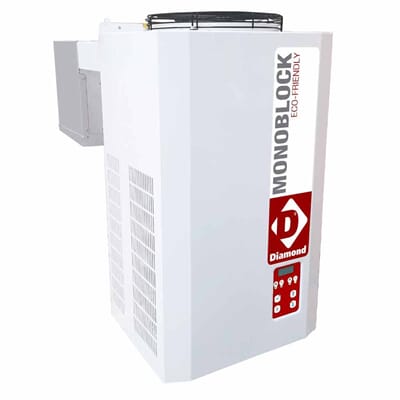

DIAMOND – AP122M-2C
Vegghengt kjølemaskin ("hengover" maskin).
Automatisk avisning, med R452a kjølemedium.
Temperaturområde fra -5° til +5°C, (omgivelsestemperatur 32°C).
Kapasitet kjølerom: ved 0°C - 16,4m3.
Denne maskintypen er en "plugg-inn maskin", ferdig fylt med gass, klar til bruk.
Hengover-maskiner er basert på at man skjærer ut to firkantspor i toppen på elementet (se skisse), maskinen senkes så ned i sporene.
Silikonér eller skum rundt gjennomgangen. Montér dreneringsslangen.
Maskinen er så klart til bruk. Mål: 76x84,5xh76 cm. 230V/1-fas. 1,59 kW.

Obs! Skal maskin monteres i omgivelsetemperatur kaldere enn +10°C må det installeres vintertilpasset utstyr til kjøleenheten, be i tilfelle om tilleggspris på dette.

Mål: 650x390(887)x814mm
Temperatur: -5°+5°
Effekt: 1.2kW
Spenning: 230/1N 50HZ
Vekt: 100kg
Volume: 0.82(m³)

English:
Refrigerated group "overlapping"
Cooling capacity rendered 1960 (W/f) for chamber volume 16,4 m³ / 16400 Lit. (T° internal 0° C & T° external +32° C).
Refrigerant expansion by capillary.
 "Overlapping" refrigeration units.
Unit certified in climatic class 5 (40°C Temperature - 40% Humidity).
All units are supplied as standard with a high pressure switch and KVL valve.
Automatic hot gas defrost with self-evaporation and overflow.
The evaporator drain pipe is equipped with a resistor to prevent ice formation.
Refrigerant gas R452a.
Supplied with cables and micro-switch for door and light (Porthole lights supplied as standard).
Microprocessor control with touch-sensitive keys.

INFO:
Attention: As standard, the ideal ambient operating temperature cannot be lower than 10°C, otherwise, provide: a compressor preheating (A-PR-R), a pressure switch for the condenser fan (A-PVC-R) as well as a heated electrical panel (A-TEC-R). In this case, the operating temperature cannot be lower than -5°C. The unit must be protected from the weather when installed outdoors.

PLUS:
Groups of 400mm length with small dimensions, possible placement on all our chambers (minimum 600mm panel).
All groups are supplied with a high pressure switch as standard. The negative groups are equipped with a thermostatic valve.
