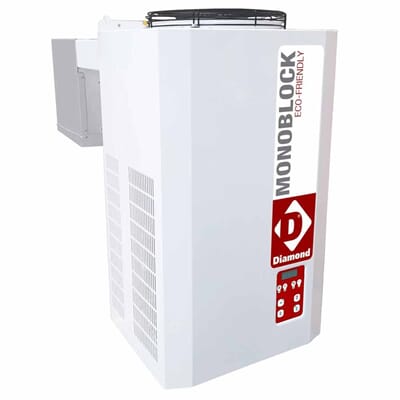

DIAMOND – AP75-PED
Vegghengt kjølemaskin ("hengover").
Automatisk avisning, kjølemedium R452a.
Temperaturområde fra 0° til +5°C, (omgivelsestemperatur 32°C).
Kapasitet kjølerom: ved temperatur 0°C innvendig og utenfor +32°C: 10,6m³ / 10600 liter.

Denne maskintypen er en "plug-in maskin", ferdig fylt med gass, klar til bruk.
Heng over-maskin er basert på at man skjærer ut to firkantspor i toppen på elementet (se skisse), maskinen senkes så ned i de to små firkantsporene. Silikoner eller skum rundt gjennomgangen.
Montér dreneringsslangen. Maskinen er så klar til bruk.
Skal maskin monteres i omgivelsetemperatur kaldere en +10°C må det installeres vintertilpasset utstyr til kjøleenheten, be i tilfelle om tilleggspris på dette.
Kjølemedium R452a.
Produsert i Europa.

Mål: 400x320(796)xh714 mm.
230V/1-fas. 0,97 kW. 50 hz.
Vekt: 71 kg.
Fraktvolum: 0,38 m³

English:
Refrigerated group "overlapping" T° -5°+5°
Unit width 400 mm, small footprint.
Cooling capacity rendered 1302 (W/f) for chamber volume 10,6 m³ / 10600 Lit. (T° internal 0° C & T° external +32° C).
Refrigerant expansion by capillary.
"Overlapping" refrigeration units. Unit certified in climatic class 5 (40°C Temperature - 40% Humidity).
All units are supplied as standard with a high pressure switch and KVL valve.
Automatic hot gas defrost with self-evaporation and overflow.
The evaporator drain pipe is equipped with a resistor to prevent ice formation.
Refrigerant gas R452a. Supplied with cables and micro-switch for door and light (Porthole lights supplied as standard).
Microprocessor control with touch-sensitive keys.
As standard, the ideal ambient operating temperature cannot be lower than 10°C, otherwise, provide: a compressor preheating (A-PR-R), a pressure switch for the condenser fan (A-PVC-R) as well as a heated electrical panel (A-TEC-R).
In this case, the operating temperature cannot be lower than -5°C. The unit must be protected from the weather when installed outdoors.
Made in Europ

PLUS:
Groups of 400mm length with small dimensions, possible placement on all our chambers (minimum 600mm panel).
All groups are supplied with a high pressure switch as standard. The negative groups are equipped with a thermostatic valve.

(WxDxH) mm: 400x320(796)x714
Temperature: -5°C to +5°C
kW: 0.97
Voltage: 230/1N 50HZ
Weight: 71 kg
Volume: 0,38 m³
