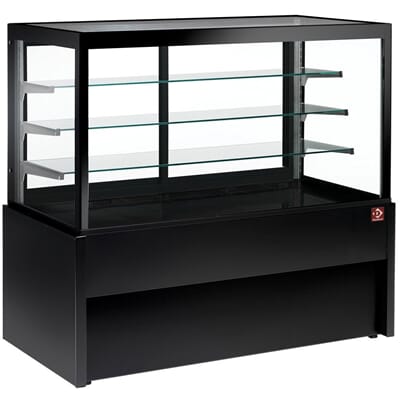

Diamond - CB10V-B9
Kjølt konditoridisk / eksponeringsdisk. Panorama innsyn. Gulvmodell.
Lukket i front med rett glass.
Hylleknekter i rustfritt stål (AISI 304), dybde i utstilling 570 mm, høyde 790 mm.
Skyvedører på betjentsiden. Ventilert kjøling.
Temperaturområde:  +2°C til +6°C, ved omgivelsetemperatur opptil +27°C. Automatisk avising.
Innvendig LED belysning med bryter.
3 stk innvendige justerbare hyller i frostet glass.
Mål: 1000x780xh1380mm. 230V/1-fas. 0,37 kW. 224 kg.
Kjølemedium: R290, mer miljøvennlig.

Disken er ideell for kaker, desserter, macaroner, men også salater, sandwicher, yoghurt, smoothies, drikker, mm.

Panoramic refrigerated display counter, ventilated, 4 levels, without storage room - BLACK
- Thermopane®" external double-glazed windows
Made of lacquered sheet steel, CFC-free polyurethane insulation.
Galvanized steel sheet, epoxy treatment (black color), depth of exposure 570 mm, height 790 mm. 3 adjustable intermediate "tempered" glass shelves (1x 300 + 2x 350 mm).
Load-bearing structure in stainless steel AISI 304.
2 LED-type side lights, with switch Service side 2 double-glazed "Thermopane®" sliding doors, vertical joints.
Electronic control, with digital display, On/Off switch
Built-in compressor unit, in climatic class 3 (+25°C & RH 60%).
Refrigerant gas R290
Ventilated evaporator (homogeneous temperature), treated against corrosion from food acids.
Automatic defrost, with auto evaporation of condensate.
Unit built in compliance with current (CE) standards.

Advantage: Here is a small overview of the strong points of our Capri Line display counters.
Fully panoramic, "Thermopane®" double glazing, display in galvanized steel sheet, epoxy treatment (black color) (possibility of GN plates),
treated evaporator, with condensate auto-evaporation, available in black, grey or in the color of your choice.
Thanks to a large display volume including 3 refrigerated intermediate shelves and LED lighting,
they allow you to diversify the offer of your desserts, cakes, macaroons, but also salads, fresh sandwiches, yoghurts, smoothies and drinks!
Also available in heated or neutral version.
