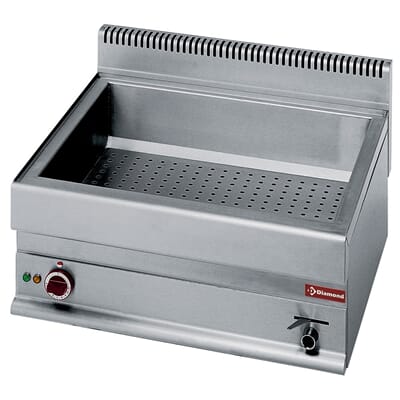

Vannbad for storkjøkken. Kapasitet: 2/1 GN. Mål: 700x650xh280 mm.
Cook line 65 serien.
DIAMOND - E65/BM7T
Vannbad utført i rustfritt stål.
Kapasitet: kantinebakke á 2/1-GN-150mm dyp (650x530xh150 mm).
Tappekran i front.
Perforert rist i bunn.
400-230V/3-fas. 3,0 kW.
Yttermål: 700x650xh280 mm.
Leveres uten kantinebakker.
mm (BxDxH) : 700x650xh280/380
kW : 3
Volt : 400-230/3N 50-60Hz
kg : 30
M³ : 0,29
English:
Electric bain-marie GN 2/1 h150 mm -Top-
Dimensions of the basin : 650x535xh175 mm, for GN containers till 150 mm.
Manufactured in stainless steel 18/10 AISI 304.
Basin in stainless steel AISI 304, standard equipped with perforated bottom plate, (bullet) outlet tap is served frontally.
Electric heating, through armoured resistances in stainless steel, placed straightly underneath the bassin.
ON/OFF switch.
Temperature regulation through thermostat from 30°C to 90°C.
NB: delivered without
GN containers.(WxDxH) mm: 700x650x280/380
kW 3 Voltage 400/3N 50-60Hz
Gross weight: 30 kg
Volume: 0,29 m³
