DIAMOND - E7/BM4T
Eletrisk vannbad utført i rustfritt stål.
Bordmodell.
Kapasitet 1/1-GN, 15cm dyp
Tappekran i front. 230V/1-fas. 1,5kW.
Yttermål: 40x70xh25/32 cm.

mm (LxWxH): 400x700(730)x250/320
kW: 1,5
Weight: 20 kg
Voltage: 230/1N 50-60Hz
Volume: 0,2 m³

English:

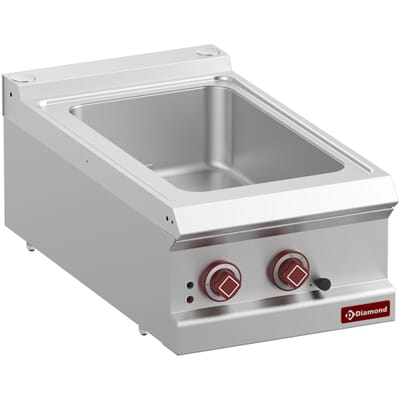

Electric bain-marie GN 1/1 depth 150 mm -Top-
Tank dimensions: 310x510xh160mm, for GN containers up to 150 mm.
NB : delivered without gastronorm containers.

Made of stainless steel AISI 304, adjustable cylinders.
Watertight top (15/10 mm) in stainless steel AISI 304.
Rear chimney in stainless steel AISI 304.
Stamped" bowl in AISI 304 stainless steel welded (continuous), with all corners and inside angles rounded for easy and hygienic maintenance, a drain cock (with ball) is placed on the front of the appliance.
Electric heating, by means of stainless steel armoured resistances, placed under the bottom of the tank, outside. ON/OFF switch, temperature regulation from 30°C to 90°C, by thermostat, front access for easy maintenance.

THE +
Arrangement possibilities 700+700 "BACK to BACK" or in combination with the new line OPTIMA 900 700+900.
Stainless steel upper Top AISI 304 with thickness of 15/10 front edge with drain gutter, pressed-in and waterproof planes, internal angles of rounded tanks, quality components "High Technology".
A perfect finish, attention to detail, superb design and a perfect alignment and an easy "HEAD to HEAD" module connection.
