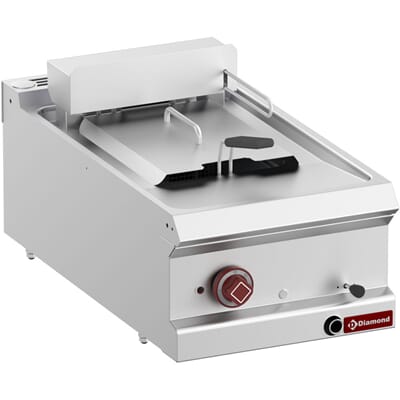

DIAMOND - E7/F124T-N
Elektrisk frityr. 1 beholder à 12 liter.
Tappekran i front. Innbygd sikkerhetstermostat.
Meget rask og robust modell.
Temperaturområde: 100-190°C.
Beholder med runde vinkler; mål: 240x340xh215mm.
Kurvmål:225x260xh115mm, en kurv medfølger.
(Kan også leveres i 400V/3-fas).

Den spesielt dyptrukne toppen gjør at kurvene lett kan tømmes, og eventuelt oljesøl renner ned igjen i frityren.
Tanken er laget av AISI 304 rustfritt stål, helsveiset (kontinuerlig).
En kald sone er opprettet på bunnen av tanken, som garanterer kvaliteten og holdbarheten til matoljene. Oljen kan enkelt tappes ut takket være tappekranen på frontpanelet.

xDxH) : 400x700(730)xh250/320
kW : 9
Volt : 400-230/3N 50-60Hz
kg : 30
M³ : 0,19

English:
Electric fryer 1 tank of 12 liters -Top-
Dimensions tank 240x340xh215 mm.
Capacity oil Min. 11 lit. Max. 12 lit.
Wire basket stainless/steel chromed dim 225x260xh115 mm.

AISI 304 stainless steel construction, adjustable cylinders
Pressed and watertight top (15/10 mm) in AISI 304 stainless steel.
Rear chimney in stainless steel AISI 304.
Stamped" bowl in AISI 304 stainless steel with all corners and inside angles rounded for easy and hygienic maintenance, with cold zone. Lid in stainless steel.
Basin drain tap (ball) placed on the front panel of the appliance.
Electric heating by means of stainless steel armoured heating elements immersed in the bowl. Pivoting of the heating element block for easy cleaning of the tank, temperature regulation from 100° to 190°C by thermostat, safety thermostat as standard, front access for easy maintenance.

ADVANTAGE:
The specially deep-drawn TOP will allow the baskets to be drained easily, as well as contain any oil spillage. The tank is made of AISI 304 stainless steel, completely welded (continuous).
A suitable cold zone is created on the bottom of the tank, guaranteeing the quality and durability of the cooking oils. The oil can be easily drained thanks to the drain cock located on the front panel.
Arrangement possibilities 700+700 "BACK to BACK" or in combination with the new line OPTIMA 900 700+900.
Stainless steel upper Top AISI 304 with thickness of 15/10 front edge with drain gutter, pressed-in and waterproof planes, internal angles of rounded tanks, quality components "High Technology".
A perfect finish, attention to detail, superb design and a perfect alignment and an easy "HEAD to HEAD" module connection.
