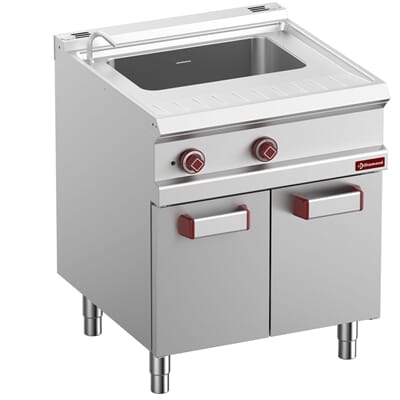

Elektrisk pastakoker på 40 liter. Gulvmodell. Diamond 700 cook line.
For storkjøkken / storhusholdning.
Diamond - E7/CPA7-N
Eletrisk pastakoker på 40 liter. Kan brukes til å koke både pasta, ris, grønnsaker, egg, etc.
1 tank på 1/1-GN, tankmål: 51x31xh30cm.
Gulvmodell med underskap. 2 dører.Utførelse i rustfritt stål AISI 304, med justerbare ben i rustfritt stål.
"Presset" tank i rustfritt stål AISI 316, tykkelse 15/10.
Resistant mot korrosjon og slitasje.
Vannkran for å fylle tanken.
Tappekran i skapet. Filter i utløp for å hindre eventuelle matrester i å tette rørene.
Kurver kjøpes separat.
Flere cook line-moduler kan kobles sammen på rekke og/eller rygg mot rygg.
mm (BxDxH) : 700x700xh850/920
kW : 9
Volt : 400-230/3N 50-60Hz
kg : 60
M³ : 0,73
English:
Electric pasta cooker, 40-liter tank (without baskets), on cupboard
Tank GN 1/1, dimensions 510x310xh300 mm.
NB: baskets optional.
Made of stainless steel AISI 304, stainless steel adjustable feet.
Pressed and watertight top (15/10 mm) in AISI 304 stainless steel.
Rear chimney in stainless steel AISI 304.
Deep-drawn" bowl in AISI 304 stainless steel with all corners and inside angles rounded for easy and hygienic maintenance, 15/10th thick, resistant to salt corrosion and wear, provided with an overflow for starches. The water tap valve for filling the tank is placed on the front of the appliance, the discharge valve in the lower cabinet. A drain to the waste water system is to be provided.
Electric heating by stainless steel armoured resistors placed inside the tank, temperature regulation by 4 position heating switch, safety thermostat as standard, front access for easy maintenance.
Advantage:
Multi-purpose cooker for pasta, rice, vegetables, eggs, etc. The specially deep-drawn TOP will drain the various pasta baskets and contain any water overflow.
The tank is made of AISI 316 stainless steel (resistant to salt corrosion and wear), completely welded (continuous), it is equipped as standard with a filter at the outlet and a second filter at the overflow outlet, so as to retain the pasta that has fallen into the cooking water, thus avoiding clogging the pipes. On request: lid for tank, allowing a quicker boiling of the water and many specific baskets.
Plus:
Arrangement possibilities 700+700 "BACK to BACK" or in combination with the new line OPTIMA 900 700+900. Stainless steel upper Top AISI 304 with thickness of 15/10 front edge with drain gutter, pressed-in and waterproof planes, internal angles of rounded tanks, quality components "High Technology"A perfect finish, attention to detail, superb design and a perfect alignment and an easy "HEAD to HEAD" module connection.
