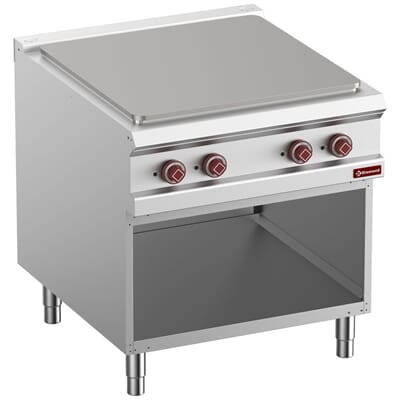

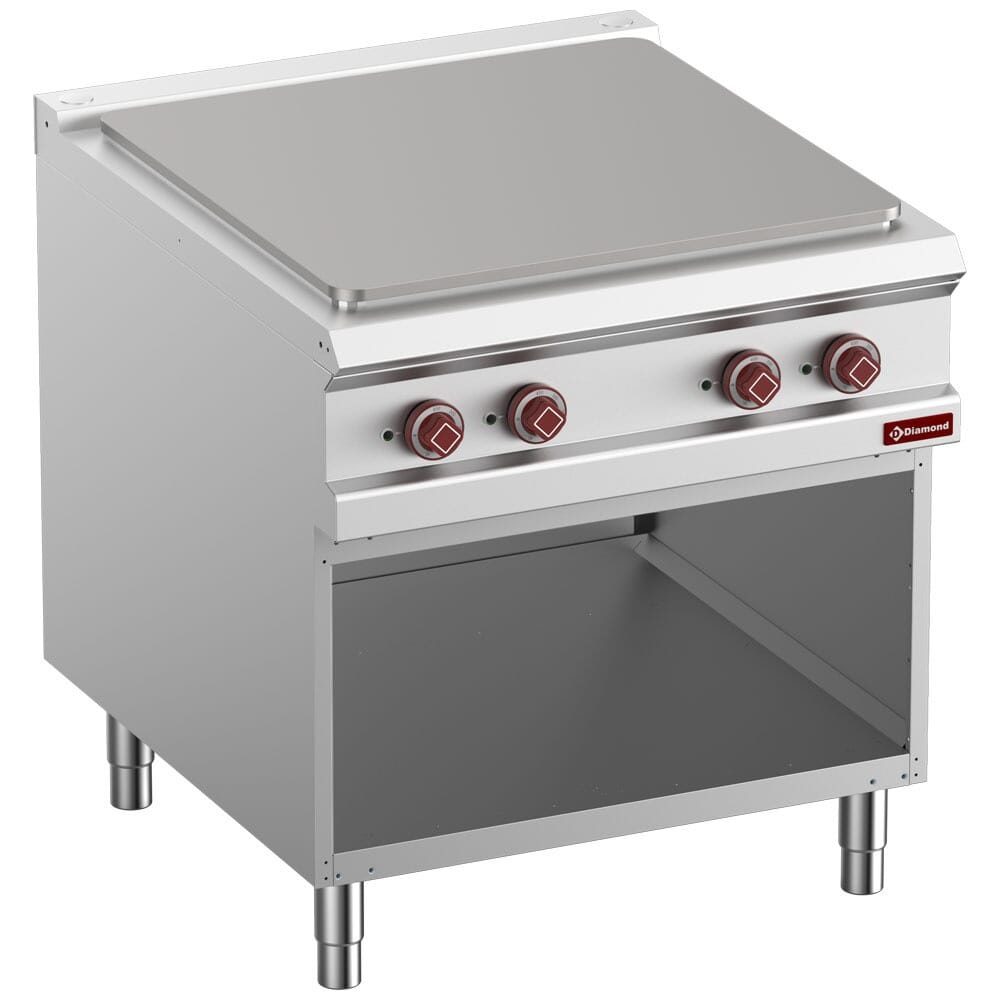

DIAMOND - E9/4PQA8
Kokebord med en stor kokeplate med 4 kokesoner (4x 3,5 kW).
Svært ideelt for retter som skal stå å lenge å koke/putre. Enkelt å skyve sautépanner og gryter. Man slipper å løfte for å bytte sone.
Åpent underskap 2/1 GN, mål: 760x740xh360 mm.
Rustfri utførelse AISI 304.
Stemplet, vanntett topp og kant i rustfritt stål.
Sikring ved overoppheting.
Regulering av varmeeffekten ved hjelp av en 7-posisjonsbryter.
Termostat fra 80°C til 450°C. Indikatorlampe.
Frontal tilgjengelighet gir enkelt vedlikehold og rengjøring.
Mulighet for å monteres sammen med Cook line 700 og 900 moduler. Rygg til rygg, eller på rekke.
mm (BxDxH) : 800x900xh850/920
kW : 14
Volt : Velg mellom 400-230/3N 50-60Hz
kg : 143
M³ : 1
English:
Electric cooking plate, module 1/1, open cabinet.
Plate (755x625 mm), with 4 zones (4x 3,5 kW).
Open cupboard (GN 2/1) (760x740xh360 mm).
Made in stainless steel AISI 304, adjustable feet in stainless steel.
Stamped and waterproof top (20/10 mm) in stainless steel AISI 304.
Chimney in the back in stainless steel AISI 304. Cooking surface, watertight "IPX4". Plate (15 mm) in cast iron, heating by resistors positioned below.
Combustion chamber thermally insulated with glass wool. Regulation (+/- de 80° to 450°C) by 7-position switch (each fireplace), with indicator lamp, frontal accessibility allowing easy maintenance.
Advantage: A single large plate with separate burners, each with its separate temperature between 80° and 450° C. Ideal for simmering.
Burners can remain on even without commissioning (without receptacle) A single plate for the simultaneous use of pots, pans of different sizes - easy sliding of sauté pans and pots.
No more need to lift them each time !!
PLUS : Possibility of back to back 900 + 900 "BACK to BACK" or in combination with the brand new range OPTIMA 700 900 + 700.
Top in stainless steel AISI 304 with a thickness of 20/10 mm, front edge with water barrier, deep drawn and watertight worktops, interior corners with rounded corners, quality parts '' High Technology".
Impeccable finish, with care for detail, a sublime Design, and perfect and simple alignment through head to head coupling 'HEAD to HEAD'.
