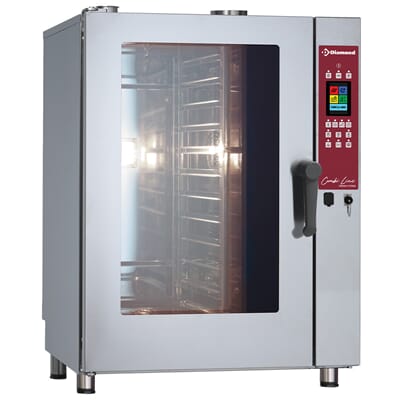

DIAMOND - DGV-1111/PST
Gass kombidamper med HD touch screen control panel. Kapasitet: 11x 1/1 GN.
Mulighet for personalisering av funksjonenen i maskinen. 150 forhåndprogramerte oppskrifter, og mulighet for å memorisere opptil 150 nye programmer.
Cook and hold-funksjon.
Diagnosesystem.
Automatisk forvarming av ovnen.
Utsatt start-funksjon.
Autorevers med dobbel fart.
Integrert vaskeprogam: auto-cleaning.
Kapasitet: 11 x 1/1-GN rist/brett (1/1-GN = 53x32,5cm).
Brett/rister tas inn på langs. Dette sparer plass i kjøkkenet, og man kan i tillegg bruke brett i størrelsene 1/3-GN, 1/2-Gn og 2/3-GN.
Avstand mellom geiderne er 6,7cm.
2 rist på 1/1-GN medfølger.

Dobbel viftefart med autorevers.
Enkelt vedlikehold og tilkomst i maskin.
Direkte steam-generator og dampkondenseringssystem.
Runnede kanter og hjørner.
Innvendig lys (halogen).
Avløp for kondensvann.
Utførelse i rustfritt stål (AISI 304).
Dobbelt glass i dør. Magnetdør.
Varselsignal når ferdig. Tidsur.
Nedkjølingsprogram.

Temperaturer kokeprogram/steam: 50-100°C.
Temperaturer varmluftsprogram/konveksjon: 50-270°C.
Temperaturer kombinasjon steam/konveksjon: 50-270°C.

Mål: 797x788xh1098 mm.
kcal/h (gas): 13760
kW: 0,4
Volt: 230/1N 50HZ
Vekt: 155 kg
Fraktvolum: 0,96 m³

English:
Gas oven steam/convection, 11x GN 1/1
Control panel TOUCH SCREEN Integrated washing system.
AUTO-CLEANING LENGTHWISE" furnace GN 1/3, 1/2, 2/3 and 1/1 plate loading.
Standard supplied with 2 GN 1/1 grids.
Compact, space-saving ovens.
Direct steam generation through "nebulization".
Convection heating: by a gas burner (PREMIX SYSTEM) placed in the room, behind the turbine deflector.
Turbine (s) with "Autoreverse" device (made of AISI 316 stainless steel).
Deep loading, spacing 67 mm.
Easy after-sales service, access to controls on the lateral part.
Quarterlight of the turbine on hinges, easy maintenance.
Chamber made of stainless steel AISI 304 fully welded, rounded corners, predisposed for grease filter.
Built-in condensate bowl (on the door), connected directly to the discharge.
Halogen lamp.
Door with thermal double glazing, indoor glass on hinges, easy cleaning.
Magnetic microdoor.
AUTO CLEANING, with dosing pump washing product and dosing pump liquid rinse product.
Entirely made of AISI 304 stainless steel. Manufactured in line with the standards (CE) in force.

THE + TOUCH SCREEN : high-definition color touch screen controls, allowing the user to personalize all the main functions of the oven.
Standard "USB" port (front positioning).
150 memorized recipes, and the possibility to memorize 150 other programs, possibility of 6 phases to choose, all programmable.
10 specific regeneration programs.
Core probe, with DELTA-T.
"Cook & Hold" function for temperature maintenance after cooking.
Self-diagnosis device. Automatic preheating of the oven.
Delayed, programmable ignition.
Double speed with "Autoreverse".

ADVANTAGE - TYPE of COOKING :
Convection (hot forced air) 20°/270°C
- Steam 20°/100°C
- Combination convection/steam 20°/270°C
- Cook & hold 50°C.

PLUS - PREMIX SYSTEM :
Burner and heat exchanger (made of stainless steel AISI 310) placed inside the cooking chamber.
With this technology to premix no heat loss, increase efficiency, speed... in addition the performance of the oven itself.
The particular electronic control device maintains the proportion gas: air = 1 : 1, save up to 20% of gas consumption and as a bonus a strong reduction of harmfull emissions!

(WxDxH) mm 797x788x1098
kcal/h (gas): 13760
kW: 0,4
Voltage: 230/1N 50HZ
Weight: 160 kg
Volume: 0,96 m³
