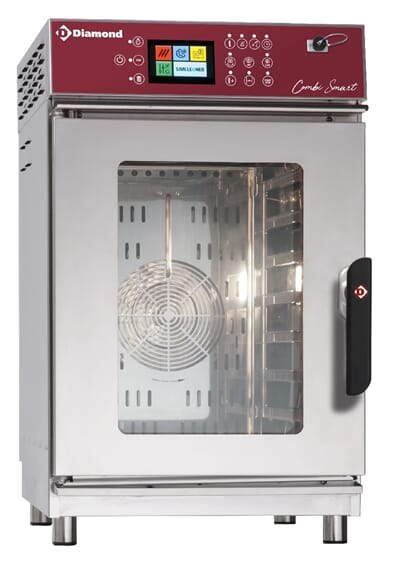

DIAMOND - FVS-711/TS
Vaskeprogram og touch screen.
Kapasitet: 7 x 1/1-GN rist/brett (1/1-GN = 53x32,5cm). 1 rist medfølger.
Avstand mellom geiderne er 67mm. Vifte med autorevers og to vifte-hastigheter.
Direkte steam-generator og dampkondenseringssystem. Runnede kanter og hjørner.
Fett-filter. Innvendig lys (halogen). Avløp for kondensvann.
Utførelse i rustfritt stål (AISI 430), og innvendig 404 AISI.
Dobbelt glass i dør. Sikkerhetslås. Varselsignal når ferdig. Tidsur. Nedkjølingsprogram.
Kontrollpanelet er montert på toppen som gjør dette til en slankere versjon en standard.
99 forskjellige programmer.

Temperaturer kokeprogram/steam: 30-110°C.
Temperaturer varmluftsprogram/konveksjon: 30-280°C.
Temperaturer kombinasjon steam/konveksjon: 30-280°C.

mm (BxDxH) : 523x846xh877
kW : 8,8
Volt : 400-230/3N 50-60Hz
kg : 114
M³ : 0,63

English:
Electric oven, steam/convection, 7x GN1/1 Touch Screen + Auto-Cleaning
- 7x GN 1/1 (530x325 mm)
- Integrated washing system AUTO-CLEANING
- Standard supplied with 1 grid GN 1/1.
- 1 Turbine "autorevers"

- Heating by armored elements) in stainless steel, placed behind the steam trap and "immediately" by "fogging".
- In depth loading of the grids GN 1/3 - 1/2 - 2/3 - 1/1, structure for removably scales, interspace 67 mm (30 + 30 mm).
- Easy access to technical interventions, front access.
- Cooking Room in stainless steel AISI 304, sides and rounded corners (easy maintenance), deep drawn bottom with end.
- Condensate sump at the front, underneath the door.
- Internal halogen lighting.
- Door with double thermal glazing (Optional: hinged door on the left), air void "ventilated" between the windows, allowing the cooling of the outer glass window, inside window on hinges (easy maintenance).
- Automatic closing of the door handle (athermic), seal (removable), placed against the door.
- Micro-switch, for stopping the ventilator(s) at the opening of the door.
- Safety thermostat.
- "Oura" for the evacuation of smoke and fumes, adjustable (from the control panel).
- Entirely made of stainless steel AISI 430, on adjustable feet.

ADVANTAGE :
3 different cooking :
- Convection (hot forced air) 30° / 280° C - Steam 30° / 110° C - Combination convection - steam 30 / 280° C

PLUS :
- CombiSmart Line : Very compact ovens technology, performance and space-saving ally.
- Control panel at the top (ventilated) with electronic sensitive keys (very intuitive), digital display.
- Turbines "autorevers" 1500/2800 tour/minutes.
- 99 programs, possibility of three phases of choice, the whole programmable desired.
- Double speed.
- Core temperature probe with DELTA T (fitted ovens, on request).
- Self-diagnosis.
- Automatic heating.
- Function rapid cooling.
