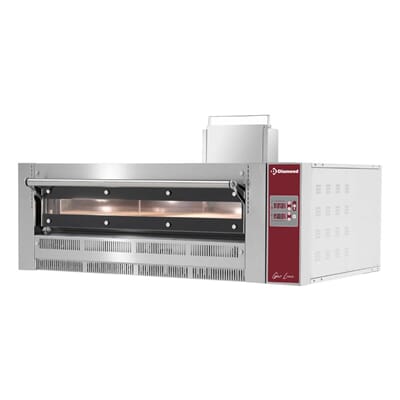

DIAMOND - GL9/33
Pizzaovn i gassutførelse.
Rommer opptil 9 pizzaer med diameter 35 cm eller 4 pizza med diameter 50 cm.
Glass i døren.
Produksjonskapasitet: 72 to 81 pizza per time (35 cm) eller 32-36 pizza per time (50 cm).
To GL9/33 kan monteres over hverandre om ønskelig.
3 cm tykk steinbunn.
Rustfri utførelse i front.
Digital temperaturkontroll opp til 450°C.
Elektronisk flammekontroll med "kutt ut"-bryter.
Mekanisk sikkerhetstermostat.
Innvendig belysning.
Kontrollpanel med digitalt display. Viser valgt og ekte temperatur. Enkel service. Kjølevifte.
Produsert i Italia.

Innvending mål: 1080x1080xh185 mm.
Utvendig mål: 1590x1480xh760 mm.
230V/1-fas. 50 hz.
210660 kcal / 24,5 kW
Vekt: 271 kg

English:
Gas oven, 9 pizzas Ø 350 mm
Chamber: 1080x1080xh185 mm (24,5 kW), 9 pizzas diam. 350 mm (or) 4 pizzas diam. 500 mm
Production capacity: 72 to 81 pizzas /H (Diam. 350mm) or 32 to 36 pizzas /H (Diam. 500mm)
2 stackable ovens (9+9)
Stainless steel chamber, refractory stone base, thick rock wool insulation "Oura" for the evacuation of smoke and steam
Double recessed interior lighting "high T°".
Door return by spring, stainless steel handle on the whole length of the door, "panoramic" safety glass window lined with a protective glass against heat, ceramic fiberglass seal.
Electronic valve control with spark plug and safety devices Stainless steel arch to prevent temperature drop when opening the door.
Safety thermostat as standard Independent" and extractable control panel with double digital display (selected and real T°), easy service, cooling fan.
The device is built in compliance with the CE standards in force.

Advantage: Oven combining performance and savings.
Control panel with sensitive keys, electronic thermostat regulation (450°C), digital display.
Gas heating, the bottom is brought to temperature by "conduction" thanks to stainless steel heat exchangers, fed by 4 burners, placed in the combustion chamber, the chamber itself is heated by "convection.
Heat recuperator, unique device allowing energy savings by exploiting the heat accumulated under the hearth.

WxDxH) mm: 1590x1480x760
kcal/h (gas): 21066 / 24,5 kW
Voltage: 230/1N 50HZ
Weight: 271 kg
Volume: 1,8 m³
