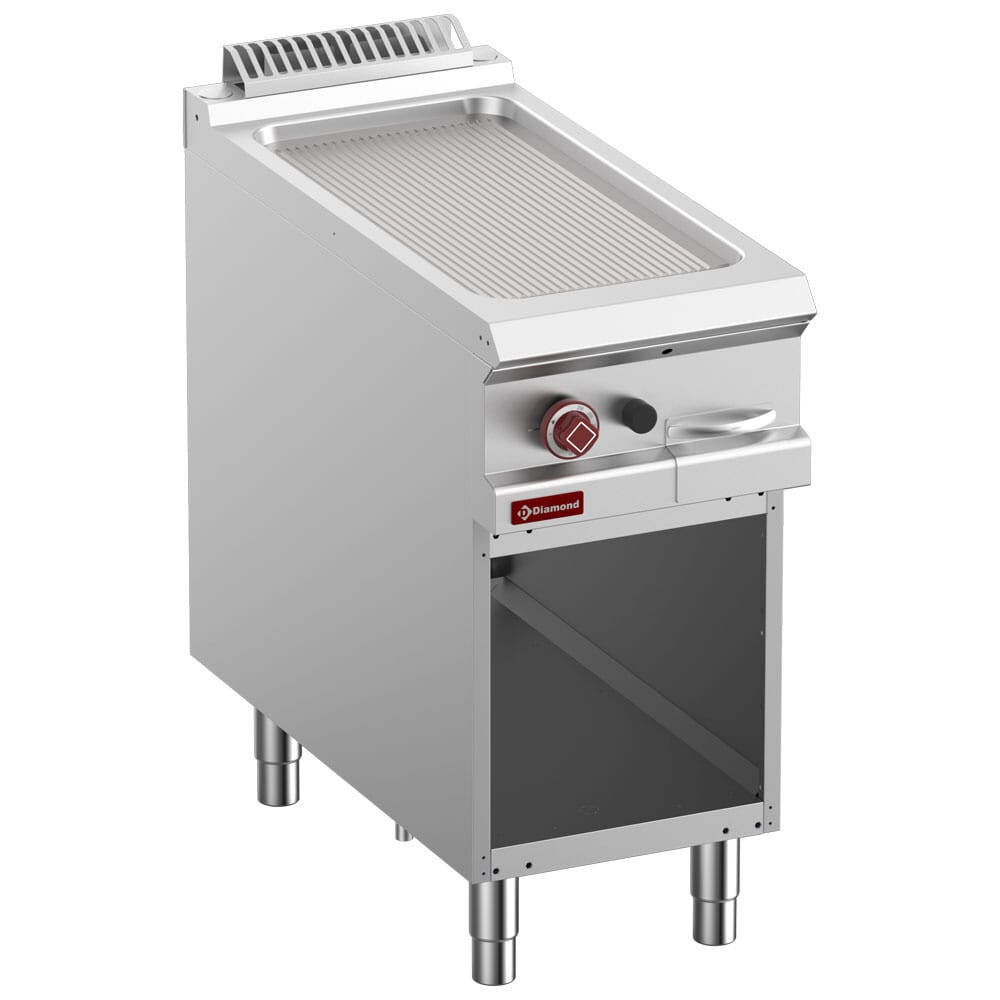

DIAMOND - G9/PRA4-N
Gass flatgrill med ribbet steketopp.
Stekeområde: 380x720 mm.
Gulvmodell, med åpent underskap 1/1 GN (360x740xh360 mm).
Steketopp i støpejern (15 mm) med høy varmeledningsevne, skråstilt forover og med anti-sprutekant på 3 sveisede sider (3 mm) i rustfritt stål.
Vanntett.
Oppsamlingsskuff for stekevæsken.
Utflørelse i rustfritt stål AISI 304.
Justerbare ben.
Rustfrie stålbrennere.
Regulerbar gassventil med pilottenning, sikkerhets termoelement.
Elektrisk piezo tenning.

Mulighet for å monteres sammen med Cook line 700 og 900 moduler. Rygg til rygg, eller på rekke.

PRODUCT DETAILS
Cooking surface 380x720 mm (27,36 dm2).
Open cupboard, (GN 1/1) (360x740xh360 mm)
 Made in stainless steel AISI 304, adjustable feet in stainless steel.
Stamped top (20/10 mm) in stainless steel AISI 304.
Chimney in the back in stainless steel AISI 304.
Cast iron cooking plate (15 mm) with high thermal conductivity, inclined forward and provided with an anti-splash edge on 3 welded sides (3 mm) in stainless steel, perfect waterproof. Frontal collection tray for recuperation of the roasting liquid.
Gas heating, by stainless steel burners with stabilized flame. Flame regulation of the burners, by a gas valve, pilot ignition and safety by thermocouple, piezo-electric ignition, frontal accessibility allowing a very easy maintenance.

THE +
Possibility of back to back 900 + 900 "BACK to BACK" or in combination with the brand new range OPTIMA 700 900 + 700. Top in stainless steel AISI 304 with a thickness of 20/10 mm, front edge with water barrier, deep drawn and watertight worktops, interior corners with rounded corners, quality parts '' High Technology '' ... Impeccable finish, with care for detail, a sublime Design, and perfect and simple alignment through head to head coupling 'HEAD to HEAD'.

Yttermål: 400x900xh850/920 mm.
kW: 9,2 / 7910kcal/h.
Volt: 230V-400V/3-fas.
Vekt: 82 kg
Fraktvolum: 0,5 m³
