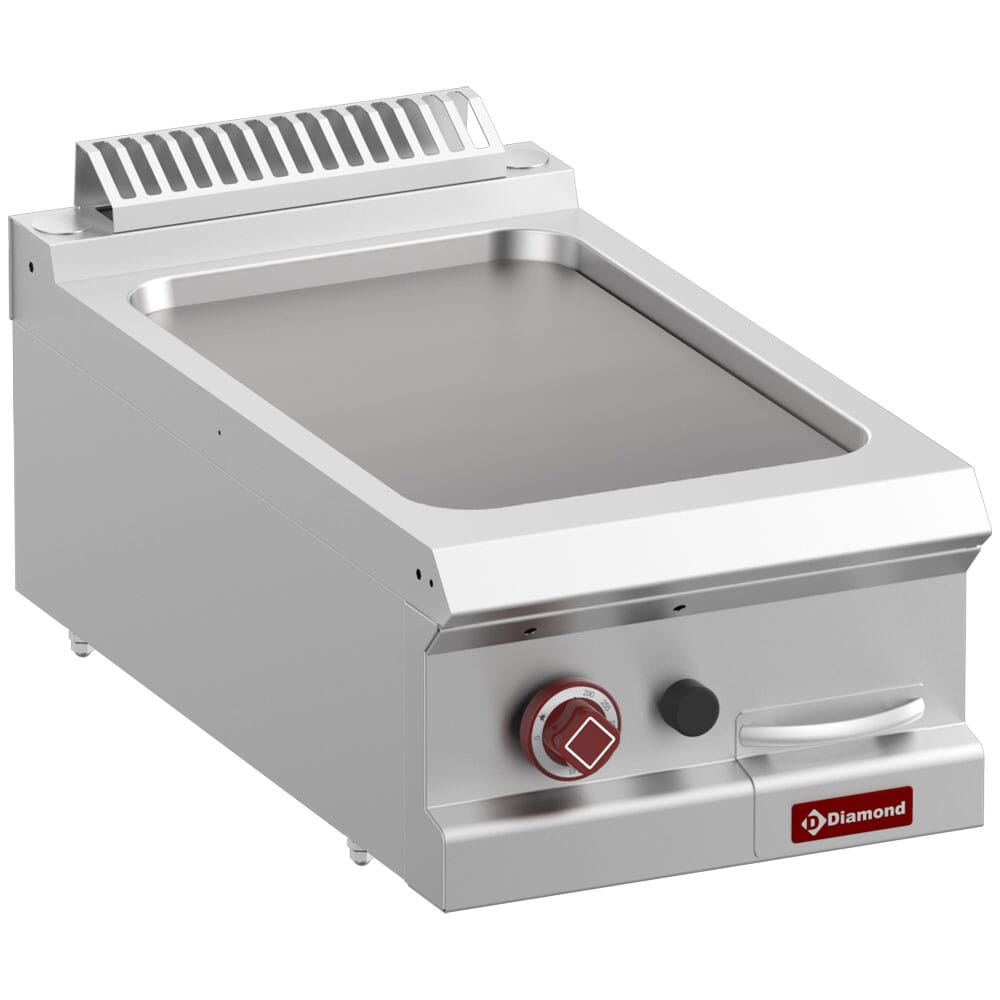

Diamond - G7/PL4T-N
Gass flatgrill - bordmodell.
Stekeplate i støpejern, glatt overflate.
Stekeflate: 35x57 cm.
Fettskuffe i front.
Tenning med pilotflamme, sikkerhetssystem med termoelement, piezoelektrisk enhet.
Flere cook line-moduler kan kobles sammen på rekke og/eller rygg mot rygg.

Product details
Useful dimensions of the cooking surface 330x540 mm, 17.85 dm2.

Made of stainless steel AISI 304, adjustable cylinders.
Deep-drawn top (15/10 mm) in stainless steel AISI 304, waterproof "IPX5".
Rear chimney in stainless steel AISI 304.
Cast iron cooking plate (15 mm) with high thermal conductivity completely welded to the top, inclined at the front.
Anti-splash edge on 3 sides (see A7/PS...).
Front collection tray for recuperation of the roasting liquids.
Gas heating, by stainless steel burners with stabilized flame. Regulation of the flame of the burners, by a gas valve, ignition by pilot light and safety system by thermocouple, electric piezo device, frontal accessibility allowing a very easy maintenance.

The +
PLUS:
Possibility of 700+700 "BACK to BACK" or in combination with the new OPTIMA 900 EVO 700+900 range. Top in 15/10 mm thick AISI 304 stainless steel, front edge with drip stop, deep-drawn, watertight worktops, rounded corners inside the tanks, ‘high technology’ quality components. A perfect finish, with attention to detail, superb design and an easy alignment of the modules by the "HEAD to HEAD" connection.

(BxDxH) : 400x700xh250/320 mm
kW : 7
Gass : 30mBar Propan
kg : 36
M³ : 0,2
