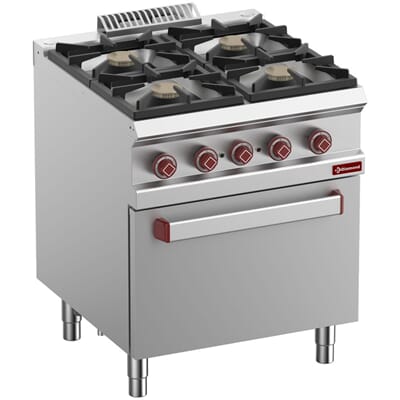

DIAMOND - G77/4BFEV7-N
Gasskomfyr med 4 bluss (4 x 7kW). Brennere med høy effekt og fleksibilitet.
Elektrisk konveksjonsovn GN 1/1 (2,6 kW), ovnsmål: 535x325xh320 mm. Tenperaturområde: 70°C til 270°C.
Brenner med pilotflamme og temperaturregulering med termostat 150°C til 290°C. (1,5kW - 7kW).
Produsert i rustfritt stål AISI 304, med justerbare føtter i rustfritt stål.
"Presset" og vanntett koketopp (15/10 mm) i rustfritt stål AISI 304, integrert væskeoppsamlingsskuff.
Øvre gitter i emaljert støpejern, dimensjoner: 330x330 mm. Kan vaskes i oppvaskmaskin.

mm (BxDxH) : 700x700(730)xh850/920
kcal/h : 24080
kW: 2,6
kg : 8,
M³ : 0,8

English:
Gas range 4 burners with eletric convection oven GN 1/1
4 burners (4x 7 kW) High Efficiency-Flexibility.
Electric convection oven (2,6 kW), GN 1/1, 535x325xh320 mm.
Made of stainless steel AISI 304, stainless steel adjustable feet.
Pressed and watertight top (15/10 mm) in AISI 304 stainless steel, integrated liquid collection basins.
Rear chimney in stainless steel AISI 304.
Oven enclosure and double-walled door (deep-drawn) made of stainless steel and provided with thermal insulation, lateral guides on 3 levels.
Oven door on spring hinges, stainless steel handle. Burner burners in watertight treated cast iron, brass crown (very high efficiency).
Burner regulation from 1.5 to 7 kW by gas valve, pilot ignition and safety by thermocouple, front access for easy maintenance.
Upper grids in enamelled cast iron, dimensions 330x300 mm. (Dishwasher safe).
Electric convection oven GN 1/1, heating by 3 circular stainless steel heating elements.
Oven temperature regulation from 70°C to 270°C, by thermostat, supplied with 1 grid.

Advantage: Combining power, efficiency, flexibility, our burners H.E.F. (High Efficiency & Flexibility) adapt very easily to all types of professional kitchen appliances.
Burners with high yield (7 kW), exchangeable as required, brass crown, automatic ignition by pilot burner (100% protected) and with thermocouple security.
Arrangement possibilities 700+700 "BACK to BACK" or in combination with the new line OPTIMA 900 700+900.
Stainless steel upper Top AISI 304 with thickness of 15/10 front edge with drain gutter, pressed-in and waterproof planes, internal angles of rounded tanks, quality components "High Technology".
A perfect finish, attention to detail, superb design and a perfect alignment and an easy "HEAD to HEAD" module connection.
