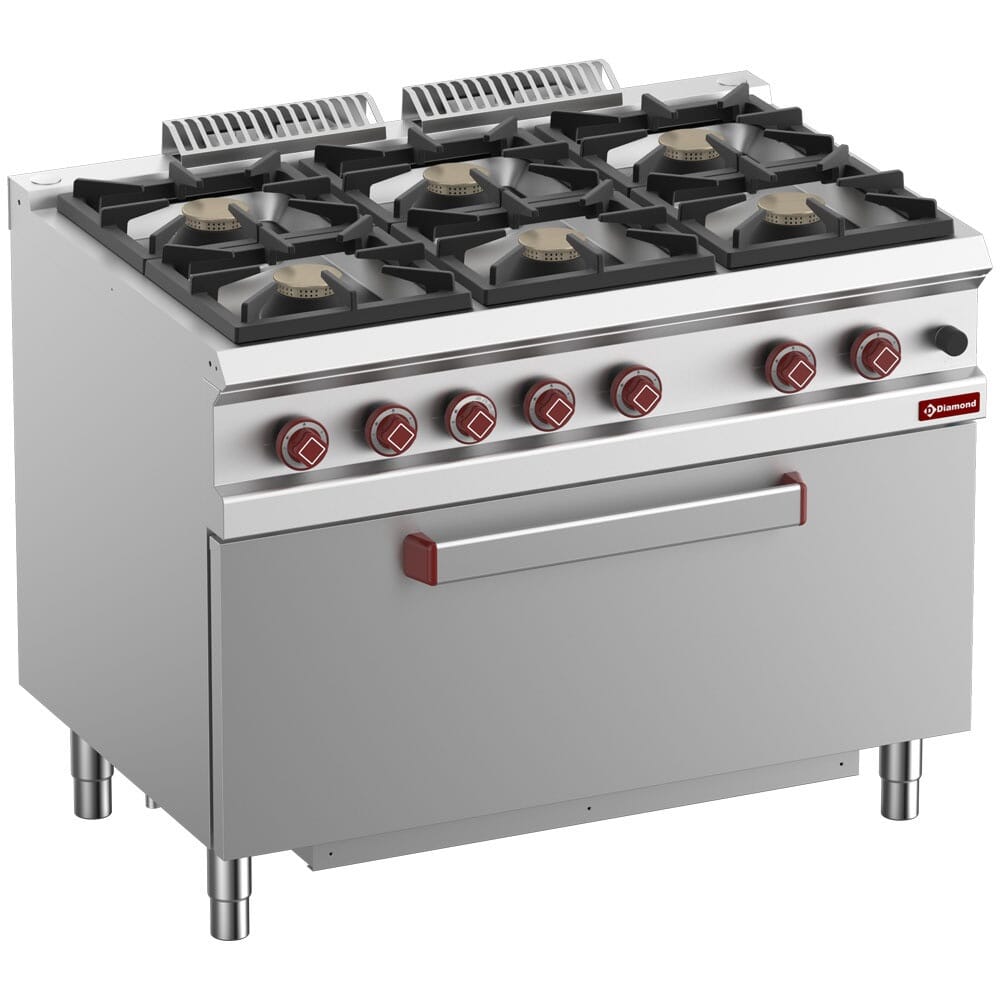

DIAMOND - G7/6BFM11-N
Gasskomfyr med 6 bluss (6x 7kW - høy effekt og fleksibilitet).
Maxi gassovn med dimensjoner: 770x660xh360 mm.
Brenner med pilotflamme og temperaturregulering med termostat 150°C til 290°C (fra 1,5kW til 7 kW).
Produsert i rustfritt stål AISI 304, med justerbare føtter i rustfritt stål.

mm (BxDxH) : 1100x700(730)xh850/920
kcal/h : 43000
kW: bluss 6x 7kW - gassovn 8 kW
kg : 115
M³ : 1,1

English:
Range 6 burners, maxi gas oven 1 big door
- 6 burners (6x 7 kW) High Efficiency-Flexibility. Maxi gas oven (8 kW) dimensions 770x660xh360 mm.
Made of stainless steel AISI 304, stainless steel adjustable feet.
Pressed and watertight top (15/10 mm) in AISI 304 stainless steel, integrated liquid collection basins.
Rear chimney in stainless steel AISI 304. Oven enclosure and double-walled door (deep-drawn) made of stainless steel and provided with thermal insulation, lateral guides on 3 levels.
Oven door on spring hinges, stainless steel handle. Burner burners in watertight treated cast iron, brass crown (very high efficiency).
Burner regulation from 1.5 to 7 kW by gas valve, pilot ignition and safety by thermocouple, front access for easy maintenance.
Upper grids in enamelled cast iron, dimensions 330x300 mm. (Dishwasher safe).
Maxi gas oven, heating by stainless steel burners with stabilized flame.
Oven temperature regulation from 150°C to 290°C, by means of a thermostatic gas valve, piezoelectric ignition and safety thermocouple, supplied with 1 grid.

The advantage : Combining power, efficiency, flexibility, our burners H.E.F. (High Efficiency & Flexibility) adapt very easily to all types of professional kitchen appliances.
Burners with high yield (7 kW), exchangeable as required, brass crown, automatic ignition by pilot burner (100% protected) and with thermocouple security.
PLUS: Arrangement possibilities 700+700 "BACK to BACK" or in combination with the new line OPTIMA 900 EVO 700+900.
Stainless steel upper Top AISI 304 with thickness of 15/10 front edge with drain gutter, pressed-in and waterproof planes, internal angles of rounded tanks, quality components "High Technology".
A perfect finish, attention to detail, superb design and a perfect alignment and an easy "HEAD to HEAD" module connection.
