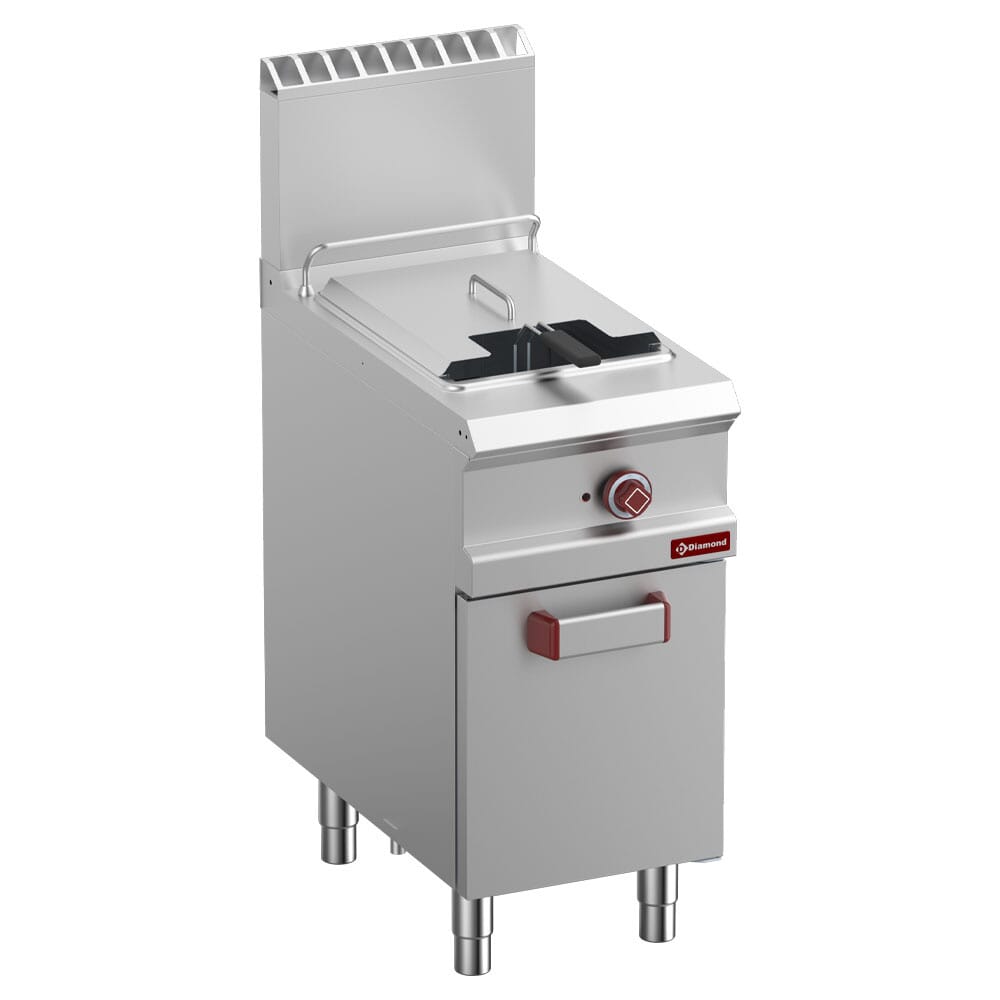

DIAMOND - G7/F14A4-NY
Gass frityr. Y beholder.
Gulvmodel.
Oljekapasitet: minimum 13 liter - maksimum 14 liter.
Enkel tapping av olje via kuleventil i underskap.
Tenning med pilotflamme, sikkerhetssystem med termoelement, piezoelektrisk enhet.
Temperaturområde: 90-190°C.
Beholder med runde hjørner; mål:310x430xh400 mm.
Kurvmål:295x290xh130 mm., en kurv medfølger.

Product details

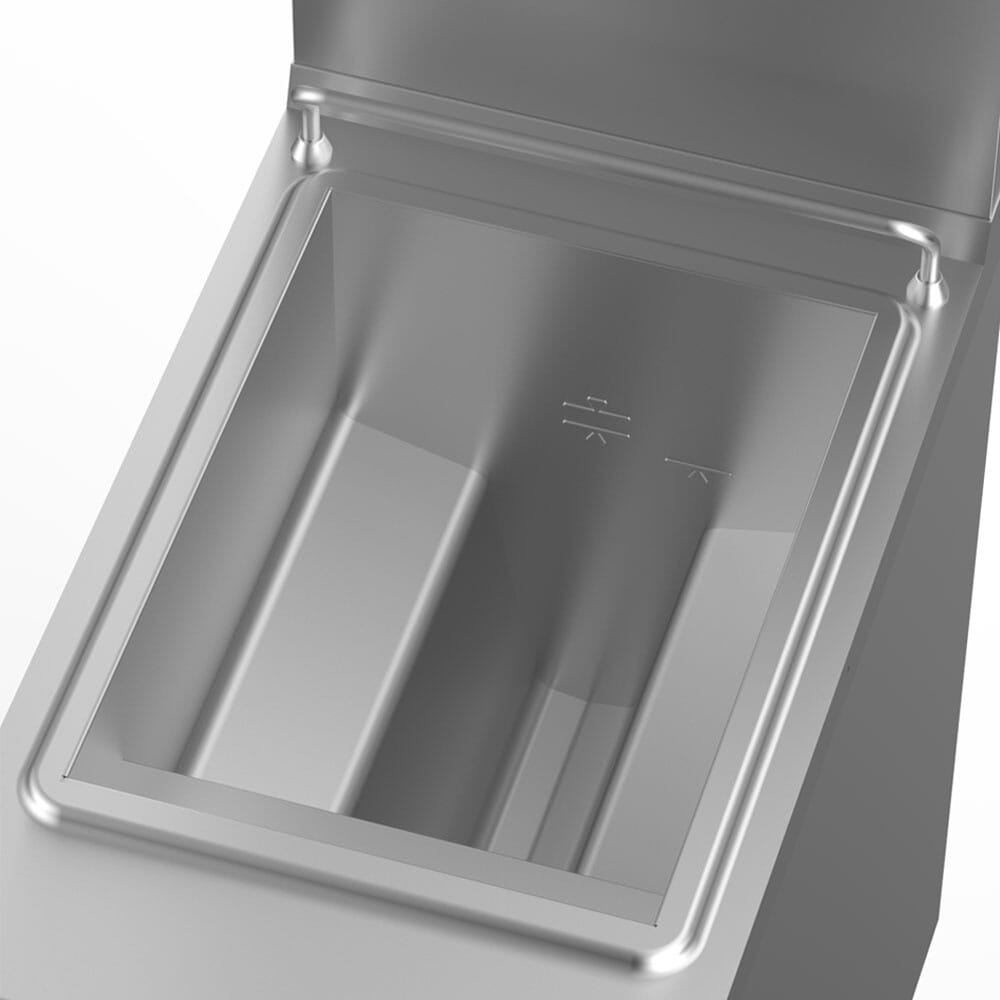

Deep-drawn "Y" tank with rounded corners.
Tank dimensions 310x430xh400 mm.
Oil quantity at use, min. 13L, max. 14L.
Chrome-plated steel basket, dimensions 295x290xh130 mm.


Made of stainless steel AISI 304, adjustable cylinders.
Deep-drawn and watertight top (15/10 mm) in stainless steel AISI 304, IPX5 water resistance.
Deep-drawn tank in AISI 304 stainless steel with all corners and inside angles rounded for easy and hygienic maintenance, fitted with cold zone. Stainless steel lid. Ball valve for draining the tank and oil settling tank, located in the lower cabinet.
Gas-fired heating using heat exchangers immersed in the tank, fed by cast-iron burners with horizontal flames. Temperature regulation from 90°C to 190°C, by thermostatic valve, ignition by pilot light and safety system by thermocouple, piezoelectric device, front accessibility allowing very easy maintenance.

The +
ADVANTAGE:
The tank is made of AISI 304 stainless steel (18/10 mm), completely welded (continuously) to the TOP for easy cleaning. A special cold zone is built into the bottom of the tank, guaranteeing the quality and long life of the cooking oils. Easy oil draining thanks to the drain tap on the underside of the unit, and the settling tank fitted with a stainless steel filter (supplied as standard).

PLUS:
Possibility of 700+700 "BACK to BACK" or in combination with the new OPTIMA 900 EVO 700+900 range. Top in 15/10 mm thick AISI 304 stainless steel, front edge with drip stop, deep-drawn, watertight worktops, rounded corners inside the tanks, ‘high technology’ quality components. A perfect finish, with attention to detail, superb design and an easy alignment of the modules by the "HEAD to HEAD" connection.

mm (BxDxH) : 400x700xh850/1180
kcal/h : 12898
Effekt : 15kW
kg : 57
M³ : 0,6
