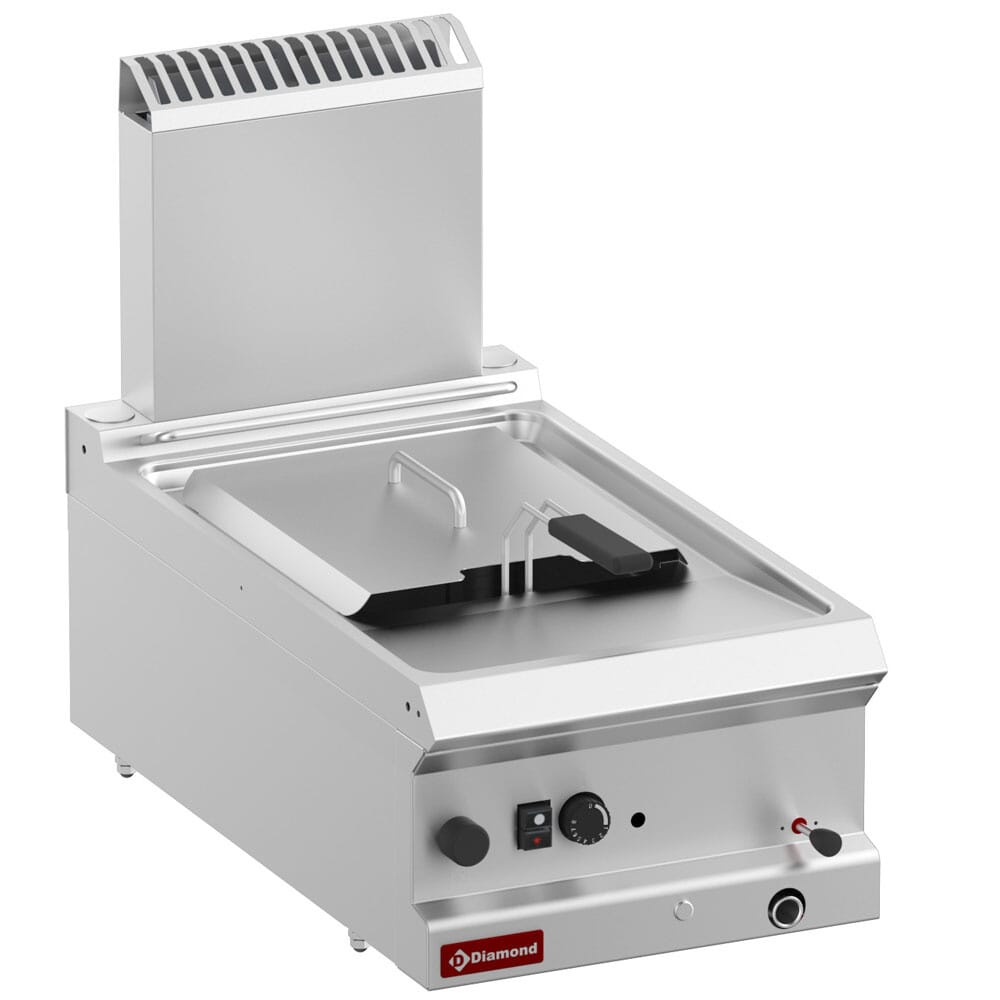

DIAMOND - G7/F124T-N
Gass frityr. 1 beholder.
Oljekapasitet: minimum 8 liter - maksimum 9 liter.
Tappekran i front. Innbygd sikkerhetstermostat.
Tenning med pilotflamme, sikkerhetssystem med termoelement, piezoelektrisk enhet.
Tilgang fra fremsiden gir svært enkelt vedlikehold.
Temperaturområde: 90-190°C.
Beholder med runde hjørner; mål:250x340xh210 mm.
Kurvmål:230x295xh120 mm., en kurv medfølger.

Product details
Tank dimensions 250x340xh210 mm.
Quantity of oil in use, min. 8L, max. 9L.
Chrome-plated steel basket, dimensions 230x295xh120 mm.

Made of stainless steel AISI 304, adjustable cylinders.
Deep-drawn and watertight top (15/10 mm) in stainless steel AISI 304, IPX5 water resistance.
Rear chimney in stainless steel AISI 304.
Deep-drawn tank in AISI 304 stainless steel with all corners and inside angles rounded for easy and hygienic maintenance, fitted with cold zone. Stainless steel lid.
Tank drain tap (ball) placed on the front panel of the appliance.
Gas-fired heating using heat exchangers immersed in the tank, fed by cast-iron burners with horizontal flames. Temperature regulation from 90°C to 190°C, by thermostatic valve, ignition by pilot light and safety system by thermocouple, piezoelectric device, front accessibility allowing very easy maintenance.

The +
ADVANTAGE:
The specially deep-drawn top ensures easy draining of the baskets, as well as containing any oil spillage. The tank is made from AISI 304 stainless steel, and is fully welded (continuously). A special cold zone is built into the bottom of the tank, guaranteeing the quality and long life of the cooking oils. Easy oil draining thanks to the drain tap on the front panel.

PLUS:
Possibility of 700+700 "BACK to BACK" or in combination with the new OPTIMA 900 EVO 700+900 range. Top in 15/10 mm thick AISI 304 stainless steel, front edge with drip stop, deep-drawn, watertight worktops, rounded corners inside the tanks, ‘high technology’ quality components. A perfect finish, with attention to detail, superb design and an easy alignment of the modules by the "HEAD to HEAD" connection.

mm (BxDxH) : 400x700xh250/580
kcal/h : 6364
Effekt : 7,4kW
kg : 33
M³ : 0,33
