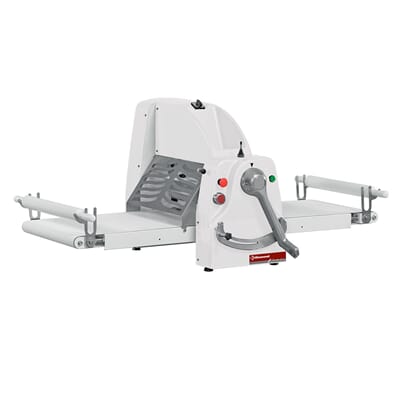

DIAMOND - LB50-75/PL
Kjevler ut de fleste deigtyper. 1 hastighet.
Valsesylinder i herdet krom med diameter Ø=8,4cm.
Beltehastighet 50cm/sek.
Valseåpning: 0-38 mm. Sammenleggbare vinger.

English:
Strip mill, on table, 500x750 mm
Mechanical controls, mats manipulated by joystick.
Table version (very compact), 4 adjustable cylinders.
Manual controls.
Variable speed (10 rpm to 60 rpm), with Inverter.
Side tables 700x500 mm (foldable).
Cylinder length 500 mm Roll opening 0 - 36 mm, rolling diameter 60 mm.
Travel speed 35 metres/minute Closed overall dimensions 380x920xh850.
Standard: 2 pastry rollers. Strips made with specific materials for food use.
Precise regulation of the thickness of the dough sheet, constant production.
Scrapers and supports made with specific materials (POM-C) for food use.
Easy disassembly and reassembly of the scrapers, without tools.
Chrome-plated and ground steel cylinders. Harvesting bin under the cylinders.
Belt with double direction of travel (Right & Left). Frame in painted steel (epoxy).
Low voltage controls 24V. Emergency stop button type "punch".
Roller protection grids, made of stainless steel. Traction system, self-lubricated. Superior flour bin.
Possibility to raise the tables, to reduce the space required for storage.
The device is built in compliance with the current CE standards.

Easy to use, quick cleaning, these are some of the advantages of our Diamond strip mills.
Their robust construction and performance make them ideal for small and medium productions.
They can be used to shape all types of pasta (puff pastry, shredded pastry, soft dough, buns, etc.).
Side tables that can be lifted or dismantled, moved and stored easily.
