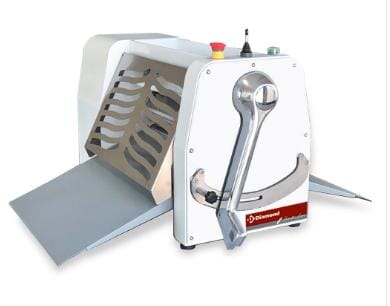

LB50-TT/SS Table laminator 500 mm, with 2 shelves
- Mechanical controls, joystick.
- Table version (very compact), 4 adjustable cylinders
- Manual controls.
- 1 speed.
- Side shelves of 500x500 mm.
- Cylinder length 500 mm
- Roll opening 0 - 36 mm, rolling diameter 60 mm
- Travel speed 35 metres/minute.

- Side shelves made of food-processed steel and allowing the product to slide.
- Precise regulation of the thickness of the dough sheet, constant production.
- Scrapers and supports made with specific materials (POM-C) for food use.
- Easy disassembly and reassembly of scrapers, without tools.
- Chrome-plated and ground steel cylinders.
- Harvesting bin under the cylinders.
- Frame in painted steel (epoxy).
- Low voltage controls 24V
- Emergency stop button type "punch".
- Roller protection grids, made of stainless steel.
- Traction system, self-lubricated.
- Top flour bin.
- The device is built in compliance with the current CE standards.

ADVANTAGE :
- Easy to use, quick cleaning, these are some of the advantages of our Diamond table laminator. Their robust construction and performance make them ideal for small productions. Side shelves that can be lifted or dismantled, moved and stored easily.

mm (BxDxH) : 980x950xh570
kW : 0,5
Hp : 0.67
Volt : 400/3N 50-60Hz
kg : 100
M³ : 0,5
