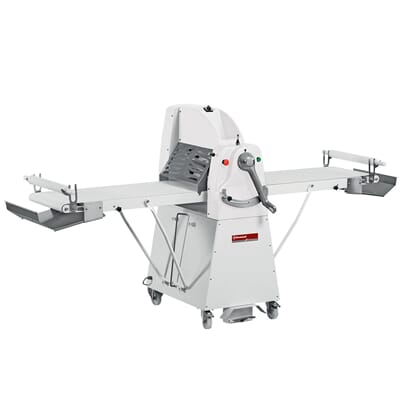

DIAMOND - LM/50-10MVV
Kjevlemaskin bakeri / storkjøkken. Variabel hastighet.
Kjevler ut de fleste deigtyper, inkludert alle slags typer pasta.
Enkel å bruke. Rask å rengjøre.
Manuell og pedaltstyrt kontroll, gir brukeren frie hender.
Maskinen passer for små til medium store produksjoner.
Sidebord kan heves eller tas av. Plassbesparende når maskinen ikke er i bruk.
Gulvmodell med 4 hjul; 2 faste og 2 roterende med brems.
Valsesylinder i herdet krom med diameter Ø=80 mm.
Beltehastighet 35 meter/minutt. 2 belter (høyre/venstre).
Sammenleggbare vinger/sidebord. Båndlengde: 1000x500 mm.
Valser/kjevler:
Valselengde: 500 mm. Valseåpning: 0-36 mm. Valsediameter: 60 mm.
Valser utført i krom-stål.
Presis regulering av deigtykkelse, konstant produksjon.
Valsebeskyttelse i rustfritt stål.
Ramme i lakkert stål (epoxy).
Nødstopp-knapp. Selvsmørende motor.
CE-godkjent.

Mål: 2370x270x1380 mm.
kW: 0,55
Volt: 400/3-fas. 50-60Hz. Kan også bestilles i 230V/3-fas.
HK: 0,75
Vekt: 240 kg
Fraktvolum: 2,84 m³

English:
Strip mill, on support, 500x1000 mm - Variable speed
Mechanical controls, mats manipulated by joystick.
Base mounted version, 4 wheels, 2 fixed, 2 swivel wheels with brakes.
Manual and pedal controls.
Variable speed.
Side tables 1000x500 mm (foldable).
Cylinder length 500 mm. Roll opening from 0 - 36 mm, rolling diameter: 60 mm.
Travel speed: 35 metres/minute.
Closed overall dimensions: 580x920xh1940.
Standard: 2 stainless steel harvesting terminals, 2 pastry rollers.
Strips made with specific materials for food use.
Precise regulation of the thickness of the dough sheet, constant production.
Scrapers and supports made with specific materials (POM-C) for food use.
Easy disassembly and reassembly of the scrapers, without tools.
Chrome-plated and ground steel cylinders. Harvesting bin under the cylinders and under the mats.
Belt with double direction of travel (Right & Left). Frame in painted steel (epoxy).
Low voltage controls 24V. Emergency stop button type "punch".
Roller protection grids, made of stainless steel. Traction system, self-lubricated.
Superior flour bin. Possibility to raise the tables, to reduce the space required for storage.
The device is built in compliance with the current CE standards.

ADVANTAGE : Easy to use, quick cleaning, these are some of the advantages of our Diamond strip mills.
Their robust construction and performance make them ideal for small and medium productions.
They can be used to shape all types of pasta (puff pastry, shredded pastry, soft dough, buns, etc.).
Manual and pedal controls, leaving the operator's hands free. Side tables that can be lifted or dismantled, moved and stored easily.

mm (BxDxH) : 2370x2700x1380
kW : 0,55
Volt : 400/3N 50-60Hz, kan leveres i 230V/3-fas på bestilling.
kg : 240
M³ : 2,84
