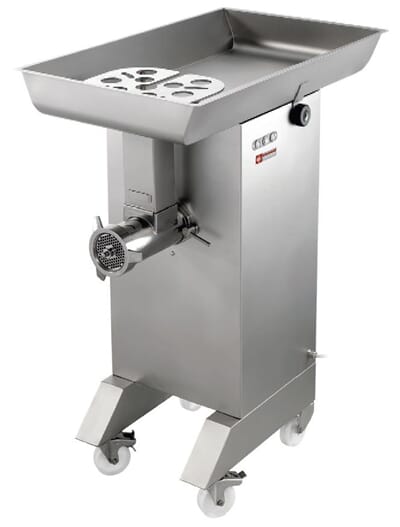

DIAMOND - TTGD-32/CB-N/Montana
Heavy-duty kjøttkvern med vanntett konstruksjon og rustfrie bein med hjul.
IP 55 ventilert motor for intens bruk.
Kapasitet på 600kg storfekjøtt per time.
Kan kjøres i revers rotasjon.
Gulvmodell.
Utført i rustfritt stål AISI 304 innvendig og utvendig.
Kvernhuset kan tas av, utført i AISI 304 rustfritt stål.
Reduksjonsgir i olje bad.

mm (BxDxH) : 564x911xh1237
kW : 2,94
Hp : 4
Volt : 400-230/3N 50Hz
kg : 115
M³ : 1,95

English:
Stainless steel meat mincer N° 32, Ø 4.5 mm, 600 kg/h, with wheels
- With protection on the head of the mincer, for working with greater than 8 mm Ø grids (10-12 ...)
- Heavy-duty machine.
- AISI 304 stainless steel waterproof construction comes with standard stainless steel legs with wheels.
- IP 55 fan-cooled motor for continuous use.
- Sealed oil-bath reducer with hardened gears and double seal to prevent leakage between the head and the motor.
- AISI 304 stainless steel grinding head is completely removable without tools for easy cleaning.
- Large removable AISI 304 stainless steel feed tray (563x900xh120 mm) with safety microswitch and square feeding neck that allows for faster processing cycles.
- Stainless steel IP 67 24 V on/off switch with reverse.
- The machine is produced in accordance with CE norms.
