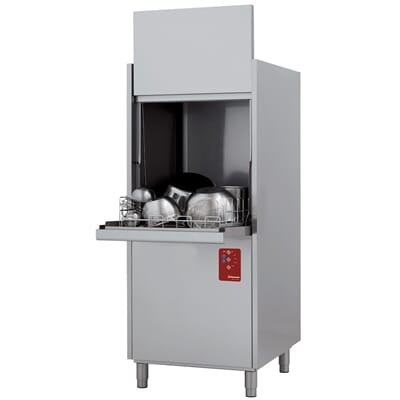

DIAMOND - D701-EKS
Grytevasker / gryteoppvaskmaskin. Vasker opptil 30 kurver per time. Kurv med mål 550x610 mm følger med.
Velg mellom 4 vaskeprogram med varighet på 120 sekunder, 240 sekunder, 360 sekunder eller til valgfri stopp.
- Dobbelt isolert
- Digital kontroll
- Energibesparende
- Raskere oppvarming
- Automatisk diagnoseprogram
- Temperaturregulering
- Automatisk dør
- Såpedoseringsapparat
- Anti-forurensende "break-tank"
- Osmosis - vanngjenvinning

Yttermål: 720x780xh1760mm (høyde: 2030mm når dør er åpen). Innvendig høyde er 650 mm.

Velg mellom 230V/3f-as og 400V/3-fas.  7,5 kW. 50 hz. Vekt: 170 kg.

English:
Potwasher basket 550x610 mm + Break Tank
Realisation "double walled".
Loading height for trays 650mm CID door (double wall) with automatic closing "soft contact" (partial opening for steam evacuation).
Double door guillotine (isolated double wall) and counterbalanced.
Standard rinsing pump (atmospheric boiler) Cycles 120''- 240'' - 360'' or continuous.
Rotating washing and rinsing arms. Self-cleaning nozzles. Deep-drawn walls.
Adjustable stainless steel feet (160-220 mm).
Removable control panel. USB" port for software update.
Pump increasing the pressure of the water in the network.
Automatic filling of the tank. Vertical, self-draining and self-cleaning washing pump (600 litres/minute).
Non-return valve. Hot water rinsing, insulated stainless steel boiler (7-12 Lit., 6kW).
Micro switch when the door is opened. Safety thermostat.
Made of AISI 304 stainless steel. Included: 1 generic basket.

THE +
All stainless steel tank filter. Peristaltic" dispenser for rinsing agent and liquid detergent.
Fully "deep-drawn" tank. USB" port for software update. CSD digital control panel (soft touch).
EED energy saver. DRD accelerated preheating phase. Self-diagnostic DID in case of anomaly.
ADD display T° of tank and boiler (HACCP standard).
RGD Exclusivité Diamond, ensures rinsing at a constant temperature of 85°C, as well as a stable pressure throughout the rinsing process.
BTD "break tank" anti-pollution device type AB.
NB: machines guaranteed for "osmosis" water supply.
BREAK TANK : The "break tank" is an AB type "anti-pollution" device (UK standards).
It prevents the tank water (with detergents) to flow back into the distribution system 2).
Its pump guarantees a constant pressure during the whole rinsing, the drying and hygiene are guaranteed by a Temperature of 85°C... until the last drop of water!

(WxDxH) mm: 720x780x1760/2030
kW: 7,5
Voltage: 400-230/3N 50Hz
Gross weight: 170 kg
Volume: 1,43 m³
