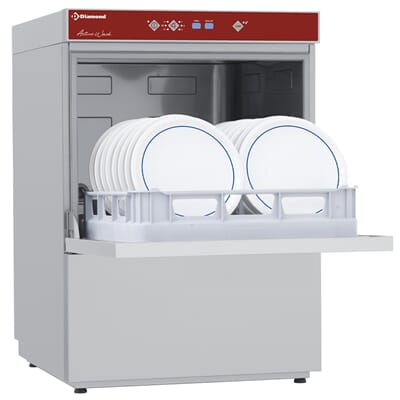

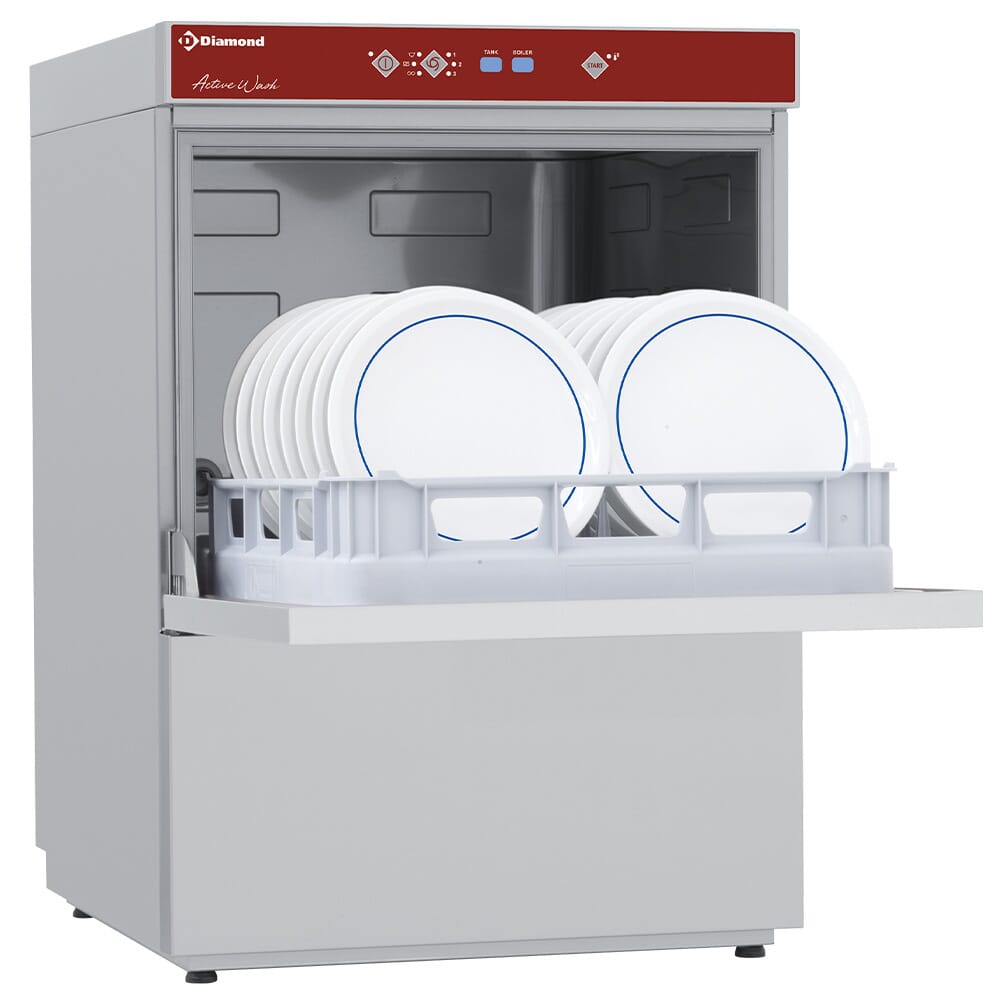

DIAMOND - D86/6B
Oppvaskmaskin - underbenktype med innebygget tømmepumpe.
Anti-forurensningsanordning type AB (Break Tank)
Doble sidevegger som reduserer støy.
Kurvstørrelse: 50x50cm, 2 kurver medfølger.
Fra 60 til 24 kurver/time, sykluser 60sek - 120sek - 150sek og kontinuerlig.
Innlastningshøyde for glass 355mm, 390mm for tallerkener.
Rustfri utførelse AISI 304.
ADD, visning av boiler og tanktemperatur.
TCD enhet som garanterer skylling ved 85°C.
DID, automatisk diagnostikk i tilfelle problemer.
DRD, akselerert forvarmingsfase.
Godkjent temperaturområde for offentlig bruk.
Maskinen krever varmtvannstilkobling, ca.55-60°C.
Maskin temperaturer, 60°C for vaskevann, og 85°C for skyllevann. 2,4 liter vann pr. vask.

"Break Tank" er en "anti-forurensning"-anordning som hindrer tankvannet/vaskevann (med rengjøringsmidler) i å strømme tilbake til distribusjonssystemet.
Pumpen garanterer et konstant trykk under hele skyllingen, Tørkingen og hygienen er garantert av en T° på 85°C... til siste vanndråpe!

Product details
Realisation "double walled".
With anti-pollution device type AB (Break Tank), Including the rinsing pump (atmospheric boiler)
Standard with disharge pump.
Charging height dishes diam. 390mm (glass height 355mm)

From 60 till 24 baskets/hour, cycles 60'' - 120'' - 150 ''.

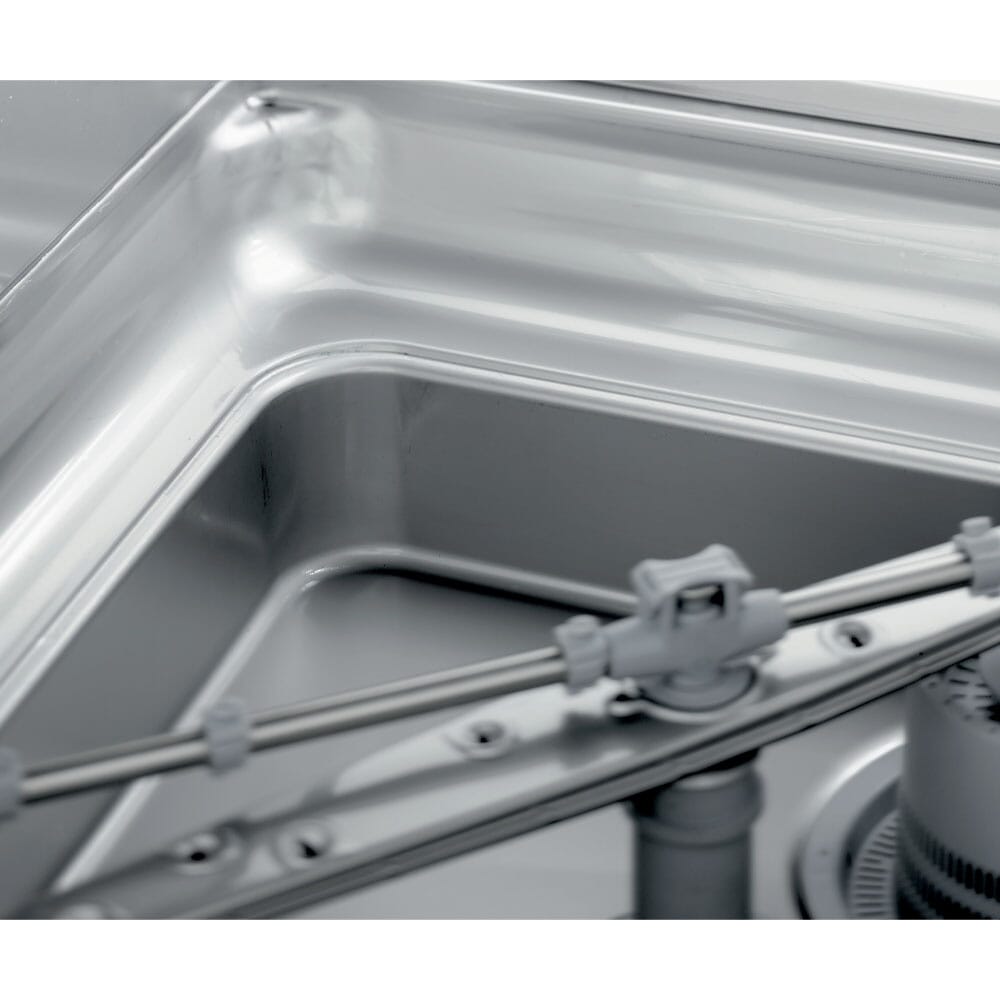

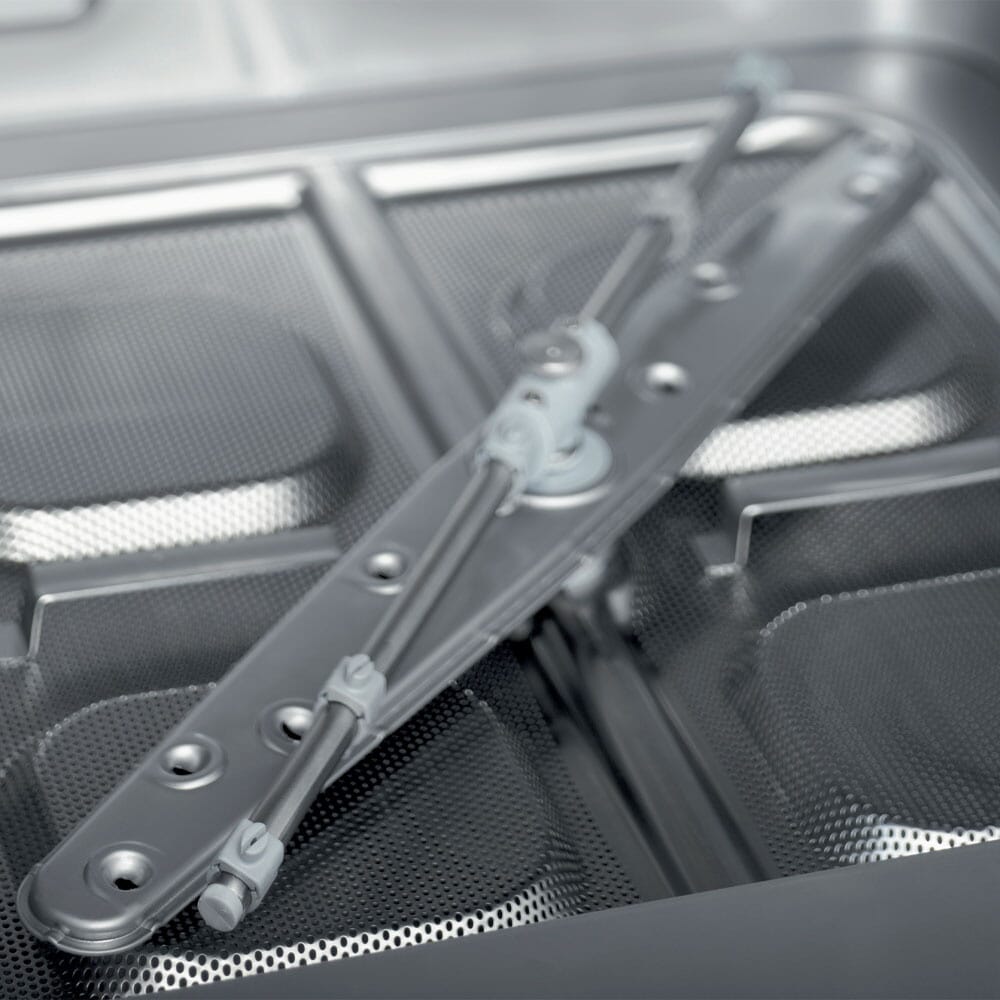

Washing arm and rinsing (upper and lower) rotating (lower in stainless steel).
Self cleaning sprinklers.
Double wall door, "stamped", "removable" waterproof seal.
Removable control panel.
Automatic filling of the tank.
Stamped basket runners, no roughness and no limestone scale.
Check valve. Hot water rinse, stainless steel boiler (6 Lit., 6 kW).
Washing pump in 230V/1N 50Hz.
Micro switch, when the door opens.
Safety thermostat.
Standard: 2 baskets, 1 goblet.
Manufactured in stainless steel AISI 304.

The +
Fully "pressed" tank (15 Lit., 2,1 kW).
Stamped basket runners, no roughness and no limestone scale.
"Integrated" tank's filter in "cast" stainless steel.
"Peristaltic" dispenser of rinse product supplied as standard.
On request: "peristaltic" dosing kit of liquid detergent.
"Patented" pump filter allowing to conserve the washing water longer and at good temperature.
High output washing pump which guarantees high energy savings.
CSD digital control panel (soft touch).
EED energy saving.
TCD Device which permits to always rinse at 85°C.
DRD accelerated preheating phase.
DID automatic diagnostic in case of problems.
ADD display of boiler and tank temperature (HACCP conform)
CID door with automatic closure (Soft Contact).
NB: machines guaranteed for "osmosis" water supply.

ADVANTAGE - SAVE THE PLANET :
State-of-the-art technologies, energy-saving, energy-saving technologies, water and detergent, thanks to a more contained tank and its "patented" filter to keep the washing water at a good temperature , as well as a high efficiency wash pump (double flux).

BREAK TANK :
The "break tank" is an AB type "anti-pollution" device (UK standards) 1) It prevents the tank water (with detergents) to flow back into the distribution system 2) Its pump guarantees a constant pressure during the whole rinsing, the drying and hygiene are guaranteed by a T° of 85°C... until the last drop of water!

mm (BxDxH) : 600x630xh830
kW : 6,5
Volt : 400-230/3N 50Hz
kg : 64
M³ : 0,48
