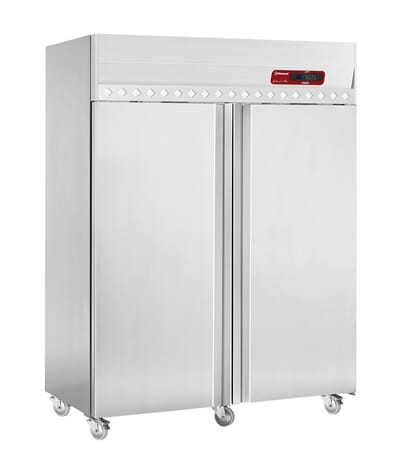

DIAMOND - IE140/R2 - GASTRO LINE PLUS  (R290 miljøvennlig kjølemedium)
Dobbelt fryseskap i rustfritt stål. Kapasitet på 1400 liter. Energi klasse: D.
Kabinet "HEAVY DUTY" kvalitet. Sertifisert  i klimaklasse 5. Ventilert.
I et travelt storkjøkken hvor dørene på fryseskapet åpnes å lukkes svært ofte, er dette er skap som kan holde på temperaturen til matvarene nede.
Levers med 6 hjul, hvor 2 med brems.
Inkluderer 3 ristehyller, per seksjon/dør, á mål: 53x65cm (2/1-GN).
Totalt 8 hyllenivå, inkl. bunn. GN-ristene kan byttes mot GN-kantinebakker.
Temperaturområde fra -15 til -25°C. Rustfritt stål utvendig og innvendig, bakside i behandlet stål.
Automatisk avrimning og fordampning av tinevann. 2 stk kjølefordampere!
Kjøleforamperne er behandlet mot saltangrep.
Digital termostatstyring. Display med blått LED-lys.

Yttermål: 1440x850xh2070 mm.
1,12 kW. 230V/1-fas.
Vekt: 258 kg.
Volum: 2,9m³

Vær observant på at konkurrerende merker gjerne har avisningssystem, men ofte ikke har fordampning av tinevann som standard, slik at dette må tømmes manuelt.
Våre modeller har begge deler som standard og i tillegg hele 2 fordampere!

Litt om plassering:
Fryseskapet avgir 2-3 kilowatt varme, skapet må derfor plasseres i et rom med god tilgang til ventilert luft for å sikre gode arbeidsforhold for skapet. Minimum og Maximum omgivelsestemperatur er 5-30°C. Vi anbefaler at rommet er Minimum 10m2 og ikke har mindre 2,5 meter takhøyde.  God ventilasjon i rommet er viktig.

English:
Ventilated freezer, 1400 liters, 2 doors. GN 2/1, on whee
- Energy class: D (very important, cabinets "HEAVY DUTY" certified climate class 5 "40 ° C Temperature - 40% humidity.
- Oversized evaporator, ventilated. - Included: 3 grids GN 2/1 (530x650 mm) per door, 3 central grids (between grids).
- Refrigerant R290. - Inner door with warming resistance. - Depression valve, standard delivered. - Delivered with 6 wheels, 2 with brake.
- Manufactured in stainless steel, interior AISI 304, exterior AISI 441 (back in treated steel, gray), monocoque frame.
- Stainless steel rack and slides (anti-tilting), allowing to place the grids as ones pleases.
- Stamped interior bottom, rounded angles and corners (without roughness). - Bottom fitted with a draining tap (high maintenance).
- Doors with ergonomic handle (no salient) and reversible (predisposition for key lock), "snap-fit" closure by magnetic joint (easy replacement without tools),
hinge with stop at 100° and closure of the doors with automatic return. - Micro-switch device, allowing the ventilator's stop, while opening the door.
- Upper panel for the accessibility of the compressor, on hinges, easy inspection. - Refrigerated group at "tampon", tropicalized, and ventilated condenser.
- Ventilated evaporator(s) Evaporator treated against salts and food acids "coating", completely hidden (non visible). - Refrigerant expansion by capillary.
- Electronic regulator (under waterproof closed box), control front screen with blue LED. - Intern lighting, with switch.
- Automatic defrosting of the evaporator, number of defrosting programmed by factory (modifiable at will). - Condenser's automatic evaporation.
- Polyurethane insulation without CFC (75 mm). - The equipment is manufactured following the (CE) standards in force.

PLUS - HIGH EFFICIENCY : - Componenets in high efficiency and low energy comsumption. - Polyurethane insulation without CFC (80 mm = super insulated), less thermal dispersion, with energy saving in addition. - Refrigerated group at "tampon",(in insulated box), tropicalized (climatic class 5 "ambient T° +40°C - Humidity40%"). - Exceptional services thanks to the 2 evaporators (1400 liters), allowing an uniform temperature (airflow 100% optimized),, guaranteeing the good preserving of the products. - Double runner slides (allowing grids and trays GN at the same time!!). - Easy work thanks to the hinges with stop at 100° and closure of the doors with automatic recall. - Electronic regulator (under closed waterproof box) with HACCP functions. - Standard delivered with 4 wheels, easy displacement for cleaning and maintenance.

mm (BxDxH) : 1440x850h2070 T°
: -15° -25°
kW : 1,12
Volt : 230/1N 50Hz
kg : 258
M³ : 2,9
