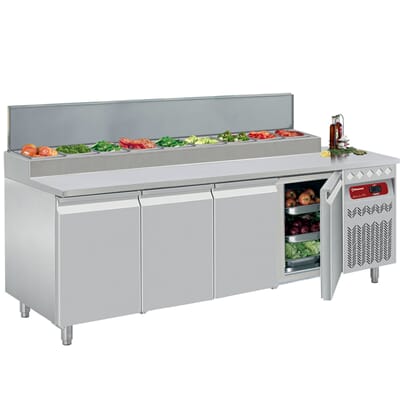

DIAMOND - DTS-10/R2
Kjølebenk med kjølt garnityrrenne, gastronorm-tilpasset  (kantinebakkene ikke inkludert).
Heldekkende rustfritt lokk over garnityret. Garnityren rommer: 10 x 1/6-GN-15cm/h.
Ventilert kjøleskap med 4 dører (selvlukkende). Tilpasset 1/1-GN.
Det medfølger en ristehylle til hver dørseksjon.
Automatisk avising og fordamping av tinevann.
Avisningsintervalle er forhåndsprogrammert på fabrikk, men kan endres om ønskelig.
Rustfritt stål utvendig og innvendig.
Digital kontroll (vanntett).
Innvendig lys.
Temperaturområde: -2 til +8°C.
Miljøvennlig kjølemedium R290.

mm (BxDxH) : 2190x700xh850/900-1150
T° : -2° +8°
kW : 0,35
Volt : 230/1N 50Hz
kg : 213
M³ : 1,84

English:
Ventilated refrigerated table, 4 doors GN 1/1, 550 Lit.& refrigerated structure
- Capacity of the structure 10x GN 1/6 (trays in option).
- 2 ventilated evaporators.
- Included: 1 grid GN 1/1 (530x325 mm), by door.
- 6 adjustable stainless steel feet. - Manufactured in stainless steel, inside AISI 304 (food), outside AISI 441.
- Upper top in stainless steel AISI 304.
- Built-in refrigerated upper structure, fitted with a cover.
- Stainless steel rack and slides (anti-tilting), allowing to place the grids as one pleases.
- Stamped interior bottom, rounded angles and corners (without roughness).
- Doors with ergonomic handle (no salient) and reversible (kit is not necessary), "snap-fit" closure by magnetic joint (easy replacing without tools), hinge with stop at 100° and closure of the doors with automatic return.
- Tropicalized compressor group (ambient T° +43°C), built-in the (right) board, and ventilated condenser.
- Frontal accessibility of the compressor group, easy inspection.
- Over-sized evaporator(s), ventilated or static (87% of relative humidity), placed between the doors.
- Refrigerated expansion R134A by capillary.
- Electronic regulator (under closed box, waterproof), control front screen with blue LED.
- Intern lighting, with switch.
- Automatic defrosting of the evaporator, number of defrosting programmed by factory (modifiable at will).
- Condenser's automatic evaporation.
- Polyurethane insulation without CFC (50 mm).
- The equipment is manufactured following the (CE) standards in force.

PLUS:
- Double runner slides (allowing grids and trays GN at the same time!!).
- Easy work thanks to the hinges with stop at 100° and closure of the doors with automatic recall.
- Evaporator treated against the salt and the food acids "coating".
- Compressor group on hinges "removable", easy maintenance for the after-sales service.
- Electronic regulator (under closed box, waterproof) with HACCP functions.
