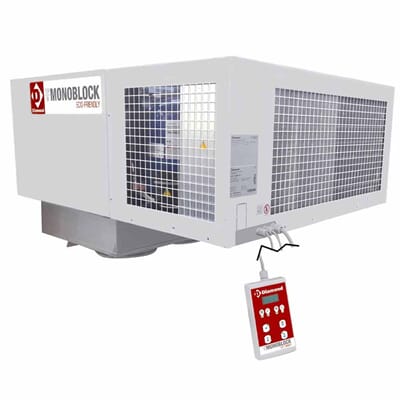

DIAMOND - SP122-PED
Takmontert kjølemaskin.
Automatisk avisning, med gass kjølemedium.
Temperaturområde fra -5C° til +5°C (omgivelsestemperatur 32°C).
Kapasitet kjølerom: 15,7 m³ (ved 0°C -  og omgivelsestemperatur 32°C)
Denne maskintype er en plugg-inn maskin, ferdig fylt med gass, klar til bruk.
Takmonteret maskiner er basert på at man skjærer ut et firkantet hull i tak (utsparingsmål), maskinen senkes så ned i hullet.
Fra undersiden låses maskinen fast med fire skruer.
Silikoner eller skum rundt, monter dreneringsslange/rør.
Maskinen er så klar til bruk.
Skal maskinen monteres i omgivelsetemperatur kaldere enn +10°C må det installeres vintertilpasset utstyr til kjøleenheten, be i tilfelle om tilleggspris på dette.


Mål: 1000x930xh350(480) mm.
Volt: 230V/1-fas. 50 hz
kW: 1,59
Bruttovekt: 123 kg
Fraktvolum: 1,06 m³

English:
Ceiling refrigerated group
Cooling capacity rendered 1881 (W/f) for chamber volume 15,7 m³ / 15700 Lit. (T° internal 0° C & T° external +32° C).
Refrigerant expansion by capillary. Ceiling" refrigeration units.
All units are supplied as standard with a high pressure switch and KVL valve as well as cables for door and light micro-switches.
Separate control panel, connected to the unit by a 5m cable, control of the functions by microprocessor with touch-sensitive keys.
Automatic hot gas defrosting with self-evaporation, as well as an overflow, water drain located below the evaporator.
The evaporator drain pipe is equipped with a resistance to prevent ice formation. Unit certified in climatic class 5 (40°C Temperature - 40% Humidity).
Refrigerant gas R452a. Window lights delivered as standard with a micro-switch for the door.

Attention: As standard, the ideal ambient operating temperature must not be lower than 10°C.
If this is not the case, the following must be provided: compressor preheating (S-PR-R), a pressure switch for the condenser fan (S-PVC-R) and a heated electrical panel (S-TEC-R).
In this case, the operating temperature cannot be lower than -5°C. The unit must be protected from the weather when installed outdoors.

PLUS:
"Extra-flat" unit for easy installation. Easily removable panels for easy access in case of intervention.
All units are supplied with a high pressure switch as standard. The negative groups are equipped with a thermostatic valve.

(WxDxH) mm: 1000x930x350(480)
Temperature: -5°C to +5°C
kW: 1,23
Voltage: 230/1N 50HZ
Gross weight: 123
Volume: 1,06 m³
