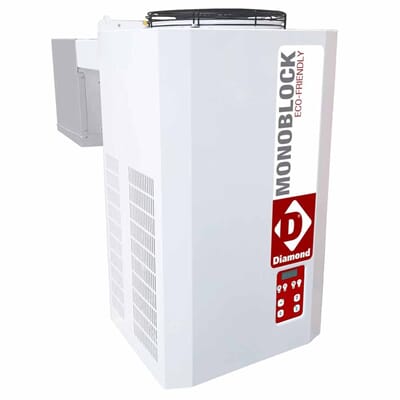

DIAMOND – AP200-PED
Vegghengt kjølemaskin ("hengover").
Automatisk avisning, med gass kjølemedium.
Temperaturområde fra -5°C til +5°C, (ved omgivelsestemperatur 32°C).
Kapasitet kjølerom: ved 0°C: 37,6 m³ / 37600 liter.
Denne maskintypen er en "plug-in maskin" (hengover-maskin), ferdig fylt med gass, klar til bruk.
Hengover-maskin er basert på at man skjærer ut to firkantspor i toppen på elementet (se skisse), maskinen senkes så ned i de to små firkantsporene.
Silikonér eller skum rundt gjennomgangen.
Montér dreneringsslangen. Maskinen er så klart til bruk. Skal maskin monteres i omgivelsetemperatur kaldere en +10°C må det installeres vintertilpasset utstyr til kjøleenheten, be i tilfelle om tilleggspris på dette.
Kjølemedium R452a.
Produsert i Europa.

Mål: 690x430(1184)xh887 mm.
Volt: 230-400V/3-fas.
kW: 1,92
Bruttovekt: 154 kg
Fraktvolum: 1,17 m³

English:
Refrigerated group " Overlapping " T° -5°+5°

Cooling capacity rendered 3389 (W/f) for chamber volume 37,6 m³ / 37600 Lit. (T° internal 0° C & T° external +32° C).
Refrigerant expansion by capillary. "Overlapping" refrigeration units. Unit certified in climatic class 5 (40°C Temperature - 40% Humidity).
All units are supplied as standard with a high pressure switch and KVL valve. Automatic hot gas defrost with self-evaporation and overflow.
The evaporator drain pipe is equipped with a resistor to prevent ice formation. Refrigerant gas R452a.
Supplied with cables and micro-switch for door and light (Porthole lights supplied as standard).
Microprocessor control with touch-sensitive keys.

Attention: As standard, the ideal ambient operating temperature cannot be lower than 10°C, otherwise, provide: a compressor preheating (A-PR-R), a pressure switch for the condenser fan (A-PVC-R) as well as a heated electrical panel (A-TEC-R).
In this case, the operating temperature cannot be lower than -5°C. The unit must be protected from the weather when installed outdoors.

PLUS:
Groups of 400mm length with small dimensions, possible placement on all our chambers (minimum 600mm panel).
All groups are supplied with a high pressure switch as standard. The negative groups are equipped with a thermostatic valve.

(WxDxH) mm: 690x430(1184)x887
Temperature: -5°C to +5°C
kW: 1,92
Voltage 400/3N 50Hz gross
Gross weight: 154 kg
Volume: 1,17 m³
