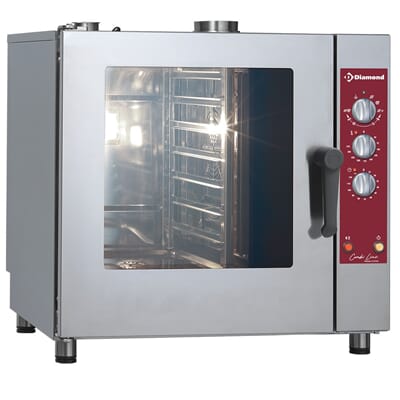

DIAMOND - DGV-711/P
Gass kombidamper.
Kapasitet: 7 x 1/1-GN rist/brett (1/1-GN = 53x32,5cm).
Brett/rister tas inn på langs. Dette sparer plass i kjøkkenet, og man kan i tillegg bruke brett i størrelsene 1/3-GN, 1/2-Gn og 2/3-GN.
Avstand mellom geiderne er 6,7cm. 1 rist på 1/!-GN medfølger.
Mekanisk kontrollpanel med direkte steamregulator fra 0 til 99%.
Vifter med autorevers.
Enkelt vedlikehold og tilkomst i maskin.
Direkte steam-generator og dampkondenseringssystem.
Runnede kanter og hjørner.
Innvendig lys (halogen). Avløp for kondensvann.
Utførelse i rustfritt stål (AISI 304). Dobbelt glass i dør. Magnetdør.
Varselsignal når ferdig. Tidsur. Nedkjølingsprogram.

Temperaturer kokeprogram/steam: 50-100°C.
Temperaturer varmluftsprogram/konveksjon: 50-270°C.
Temperaturer kombinasjon steam/konveksjon: 50-270°C.

Mål: 797x788xh818 mm.
kcal/h (gas): 9976
kW: 0.4
Volt: 230/1N 50HZ
Vekt: 125 kg
Fraktvolume: 0,75 m³

English:
Gas oven steam/convection, 7x GN 1/1
Mechanical control panel: steam regulator from 0 to 99%, thermostat from 50 ° C to 270 ° C, timer from 1 to 120 min.
Oven "LENGTHWISE" loading plates GN 1/3 ,1/2 , 2/3 et 1/1. Standard delivered with 1 grid GN 1/1.
Compact, space-saving furnaces. Direct steam by "nebulization".
Convection heating: by a gas burner (PREMIX SYSTEM) placed in the chamber, behind the turbine deflector.
Turbine(s) with "Auto-reverse" device (made of AISI 316 stainless steel).
Depth loading, spacing 67 mm.
Easy after-sales service, access to controls from the side part.
Hinged turbine deflector, easy maintenance.
Chamber made of fully welded AISI 304 stainless steel, rounded corners and corners, predisposed for grease filter.
Integrated condensate collection tray (on the door), directly connected to the discharge.
Allogenic light.
Door with double thermal glass, hinged inner glass, easy cleaning, athermic and ergonomic handle.
Magnetic door micro switch.
Steam condenser for condensate discharge as standard. "Releasing valve" for smoke evacuation - cooking vapours.
Made of AISI 304 stainless steel.
The equipment is manufactured following the (CE) standards in force.

Advantage: Type og cooking:
- Convection (hot air) 50°/270°C
- Steam 50°/100°C
- Mixed convection
- Steam 50°/270°C.

PLUS - PREMIX SYSTEM : Burner and heat exchanger (made of stainless steel AISI 310) placed inside the cooking chamber.
With this technology to premix no heat loss, increase efficiency, speed. In addition the performance of the oven itself.
The particular electronic control device maintains the proportion gas: ait = 1 : 1, save up to 20% of gas consumption and as a bonus a strong reduction of harmful emissions.

WxDxH) mm: 797x788x818 mm
kcal/h (gas): 9976
kW: 0.4
Voltage: 230/1N 50HZ
Weight: 125 kg
Volume: 0,75 m³
