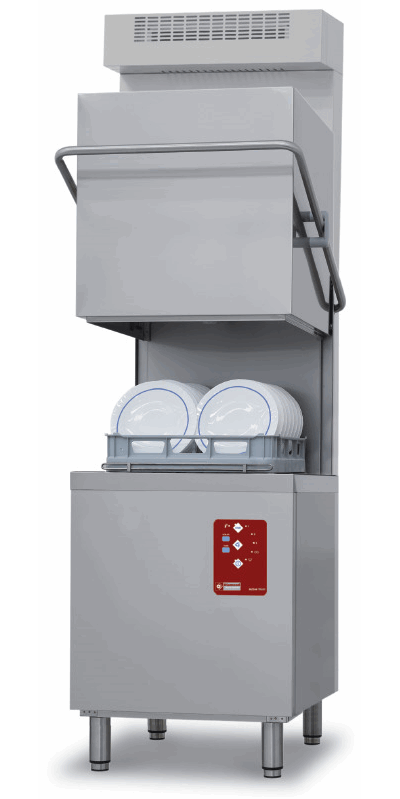

DIAMOND-D26/6B-RC
Hetteoppvaskmaskin med varmegjenvinning.
Isolert dobbel stålhette.
Skyllepumpe.
Innebygget dampkondensator.
Godkjent temperaturområde for offentlig bruk.
Fri høyde over kurv 43cm.
Vaske- og skylletid, valgfritt: 60"- 80''- 120''; sekunder.
Maskinen er ideell for hjørnemontering, eller rett gjennomgående.
Roterende vaske- og skyllearmer.
Justerbare rustfrie ben (16-22cm).
Kontrollpanel i front.
Automatisk fylling av tank.
Sikkerhetstermostat.
Leveres med doseringspumpe for tørremiddel.
Produsert i rustfritt stål AISI 304.
Kurvstørrelse: 50x50cm.
Kapasitet: 24 - 60 kurver i timen.
Forbruk av vann per vaskesyklus er ca. 2,7 liter. Maskinen krever varmtvannstilkobling, ca.50-55°C.
Maskintemperaturer: 60°C for vaskevann og 85°C for skyllevann.
Maskinen er meget lett å betjene, rengjøre og servicevennlig.

Med maskinen følger: 3 stk oppvaskkurver. 1 stk bestikksylinder. 1 stk. armert fylleslange, og 1 stk. fleksibel tømmeslange.
Produsert i Italia.

English:
Hood dishwasher, basket 500x500 mm + Condenser vapor-recovery unit
- Realisation "double walled". with thermic insulation.
- Integration of the "Green System H.R.S." Condenser vapor-recovery unit, big energy savings
- Charging height dishes diam. 430 mm.

- From 60 till 24 baskets/hour, 3 cycles 60'' - 120"-80" or continuous.
- Device opening and closing cover on connecting rods
- Vertical wash pump (dual flow), self-draining and self-cleaning.
- Rotating wash and rinse arms.
- Self cleaning sprinklers.
- Adjustable stainless steel feet (160-220 mm).
- Front control panel.
- Automatic filling of the tank.
- Check valve.
- Hot water rinse, stainless steel boiler (12 Lit., 8 kW).
- Micro switch, when the door opens.
- Safety thermostat.
- Manufactured in stainless steel AISI 304.
- Standard : 3 baskets, 1 goblet.

ADVANTAGE - H.R.S.:
Warmth and steam recuperation system consisting of: a battery with double flow warmth-exchanger, heats up by crossing the cold water with the steam coming from the washing chamber.
- Low running costs: the water T° rises up to 25°C, the result is a 38-% saving of electric energy.
- Healthier work environment: by eliminating humidity emission in the environment, no more steam saturated of humidity up to 60°C.
- Easy installations: no need to install an additional hood to eliminate the steam, no extra sanitary or electrical connections needed! NB Not compatible with Osmose

ADVANTAGE - BREAK TANK :
The "break tank" is an AB type "anti-pollution" device (UK standards)
1) It prevents the tank water (with detergents) to flow back into the distribution system
2) Its pump guarantees a constant pressure during the whole rinsing, the drying and hygiene are guaranteed by a T° of 85°C... until the last drop of water!

PLUS:
- Fully "pressed" tank, double wall (2,5 kW).
- "Integrated" tank's filter in stainless steel.
- "Peristaltic" dispenser of rinse product supplied as standard.
- On request: "peristaltic" dosing kit of liquid detergent and drain pump kit.
- "Patented" pump filter allowing to conserve the washing water longer and at good temperature.
- CSD digital control panel (soft touch).
- EED energy saving.
- DRD accelerated preheating phase.
- DID automatic diagnostic in case of problems.
- ADD display of boiler and tank temperature (HACCP conform)
- RGD Constant rinsing T° of 85°C, stable pressure during all the rinsing cycle.
- BTD "Break Tank" anti-pollution device, AB type, Including the rinsing pump (atmospheric boiler).

ADVANTAGE - SAVE THE PLANET :
State-of-the-art technologies, energy-saving, energy-saving technologies, water and detergent, thanks to a more contained tank and its "patented" filter to keep the washing water at a good temperature , as well as a high efficiency wash pump (double flux).

mm (BxDxH) : 710x800xh1520/2190
kW : 8,7
Volt : 400-230/3N 50Hz
kg : 150
M³ : 1,3
