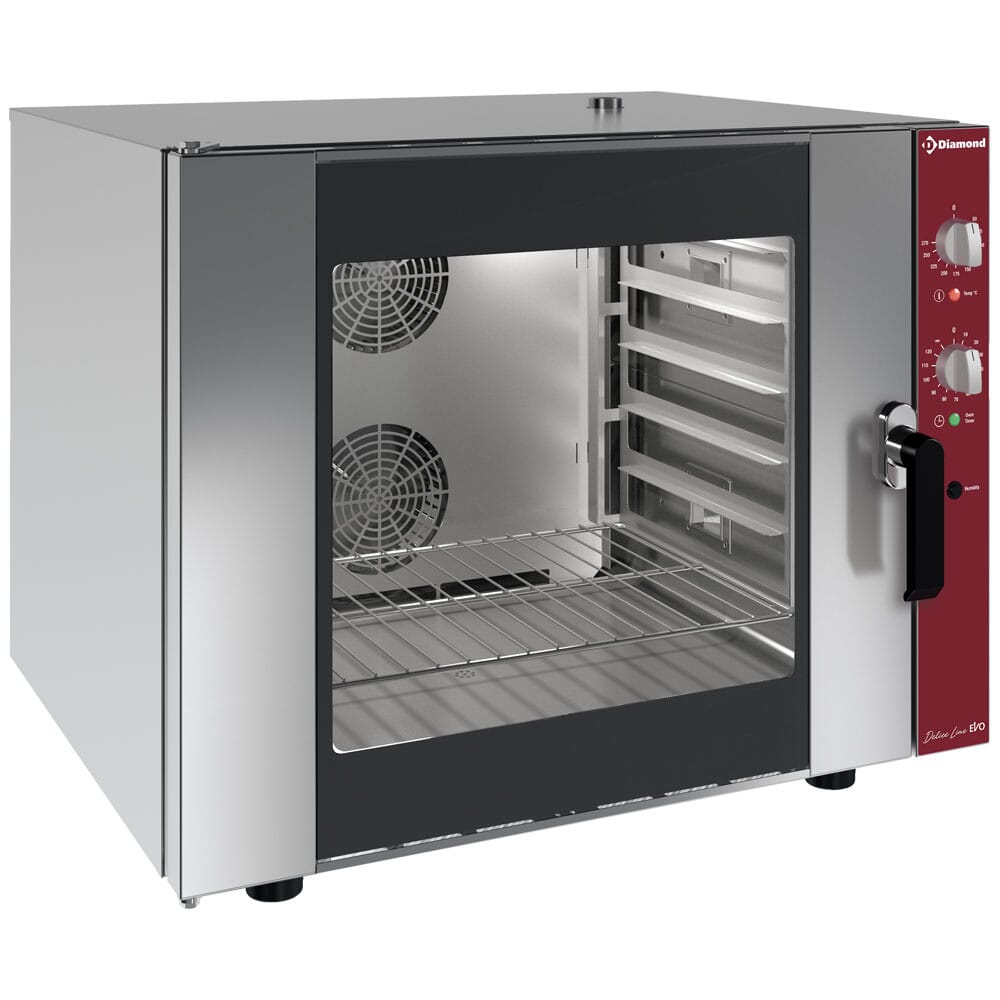

DIAMOND - CPE664-BG
Bake-off ovn (varmluft) med fuktighetstilsetning.
2-viftemotorer m/autorevers for jevnere steiketemeratur.
Dobbelt glass 4mm.
Temperaturinnstilling 50-270°C.
Tidsur fra 1-120 minutter.
Varselsignal når ferdig.
Dørbryter som stopper viftemotor dersom døren åpnes.
Innvendig lys.
Utvendig og innvendig utførelse i rustfritt stål AISI 430.
Kapasitet 6 stk. 60x40cm brett/ rister. 1 stk rist følger med.
Mål: 885x815xh720mm. 230-400V/3-fas. 7,8 kW.    (Vekt 87 kg).

Product details
Supplied with 1 grid 600x400 mm.
2 "autoreverse" turbines

Chamber with rounded corners.
Easily removable" counter-door seal.
Easily removable plate-holder structure (75 mm).
Deep-drawn bottom collects condensation for discharge.
Easily removable deflectors. Condensate drain.
Motor(s) with "autoreverse" turbine(s) (2800 rpm) guarantee even heat distribution.

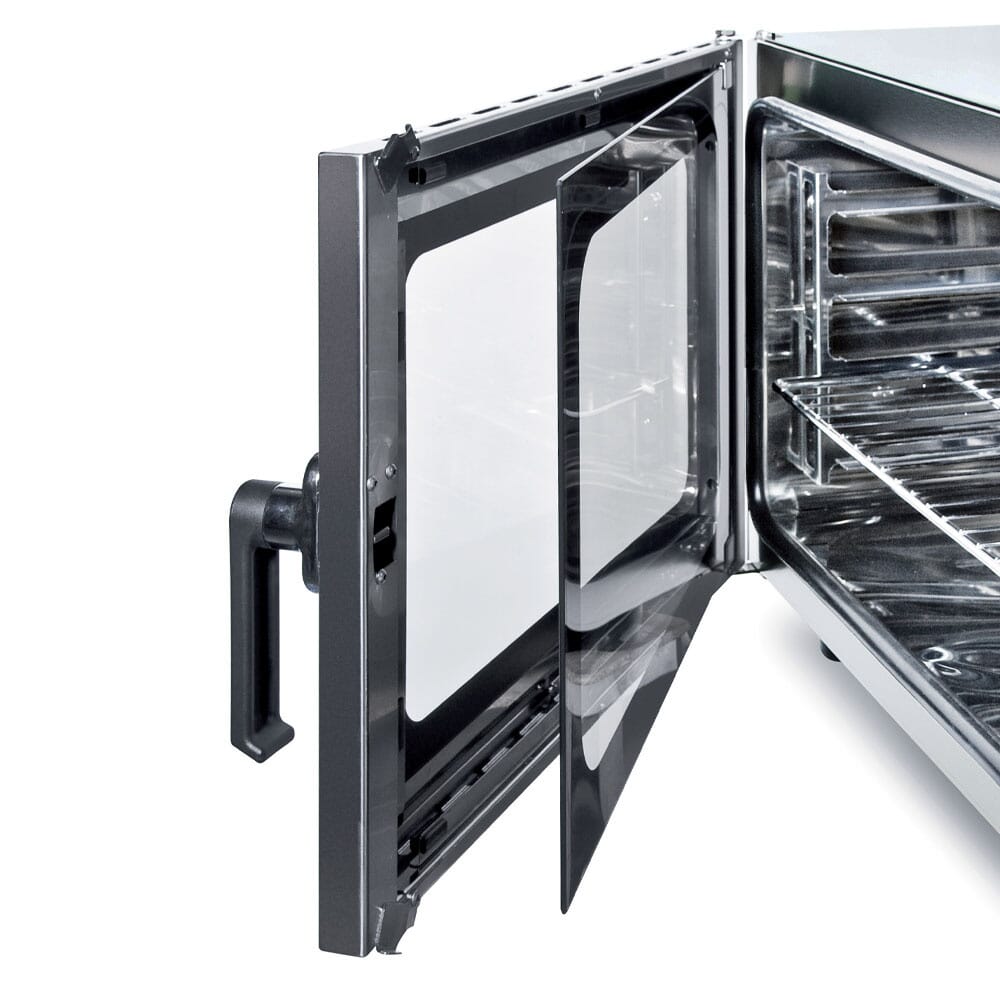

Double-glazed athermic door (4 mm), hinged intermediate pane for easy maintenance. Ergonomic athermic handle, self-closing.
Micro-switch to stop fan when opening.
Electrical heating: stainless steel armored heaters located behind the turbine deflectors.
Control panel with humidification selector, thermostat from 50°C to 270°C, timer from 1 to 120 min.
Internal and external construction in AISI 430 stainless steel.

The +
ADVANTAGE :
Very quick temperature reach.
Homogenous and quick cooking, even at low temperature thanks to the heat circulation through turbines.
Thanks to the humidifier, cook without drying out, "autoreverse".
Wide range of accessories, supports, levitation cupboard,...
PLUS:

Professional oven, big benefits (7,9 Kw). Turbines "autoreverse" oversized (2800 turns/min). "reinforced "frame ultra strong. Door with double glazing 4mm "High T°". Pressing fund wich collects condensation towards the discharge... Wide range of accessories, supports, levitation chambers...

mm (BxDxH) : 885x815x720
kW : 7,8
Volt : 400-230/3N 50-60Hz
kg : 87
M³ : 0,73
