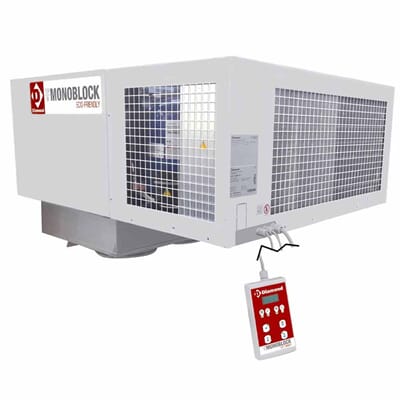

DIAMOND - SP200-PED
Takmontert kjølemaskin.
Automatisk avisning, med gass kjølemedium.
Temperaturområde fra 0° til +5°C (omgivelsestemperatur 32°C).
Kapasitet kjølerom: ved 0°C - 28,2 m³.
Denne maskintypen er en plug-in maskin, ferdig fylt med gass, klar til bruk.
Takmonteret maskiner er basert på at man skjærer ut et firkantet hull i tak (utsparingsmål), maskinen senkes så ned i hullet.
Fra undersiden låses maskinen fast med fire skruer. Silikoner eller skum rundt, monter dreneringsslange/rør. Maskinen er så klar til bruk.
(Obs! Skal maskinen monteres i omgivelsetemperatur kaldere en +10°C må det installeres vintertilpasset utstyr til kjøleenheten, be i tilfelle om tilleggspris på dette).
Kjølemedium R452a.
Produsert i Europa.

Mål: 1110x930xh440(620) mm.
Volt: 400V/3-fas.
kW: 2,4
Bruttovekt: 167 kg
Fraktvolum: 1,06 m³

English:
Ceiling refrigerated group T° -5°+5°
Cooling capacity rendered 2961 (W/f) for chamber volume 28,2 m³ / 28200 Lit. (T° internal 0° C & T° external +32° C).
Refrigerant expansion by capillary. Ceiling" refrigeration units.
All units are supplied as standard with a high pressure switch and KVL valve as well as cables for door and light micro-switches.
Separate control panel, connected to the unit by a 5m cable, control of the functions by microprocessor with touch-sensitive keys.
Automatic hot gas defrosting with self-evaporation, as well as an overflow, water drain located below the evaporator.
The evaporator drain pipe is equipped with a resistance to prevent ice formation.
Unit certified in climatic class 5 (40°C Temperature - 40% Humidity).
Refrigerant gas R452a.
Window lights delivered as standard with a micro-switch for the door.

Attention: As standard, the ideal ambient operating temperature must not be lower than 10°C.
If this is not the case, the following must be provided: compressor preheating (S-PR-R), a pressure switch for the condenser fan (S-PVC-R) and a heated electrical panel (S-TEC-R).
In this case, the operating temperature cannot be lower than -5°C. The unit must be protected from the weather when installed outdoors.

PLUS: "Extra-flat" unit for easy installation. Easily removable panels for easy access in case of intervention.
All units are supplied with a high pressure switch as standard. The negative groups are equipped with a thermostatic valve.

(WxDxH) mm: 1110x930x440(620)
Temperature: from -5°C to +5°C
kW: 1,65
Voltage: 400/3N 50Hz
Gross weight: 167 kg
Volume: 1,06 m³
