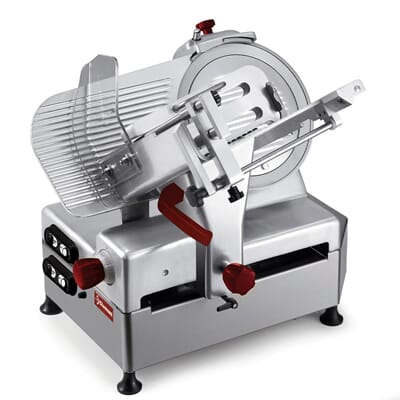

DIAMOND - 350/AVV
Automatisk oppskjæremaskin med variabel hastighet.
Knivblad med diameter á 350m.
Spesialdesignet for a stabilt og jevnt kuting.
Automatisk vognføring (knivblad blir flyttet av belte), men maskinen kan også brukes manuelt om ønskelig.
Kuttekapasitet: 270x230mm.
Kuttetykkelse fra 0 - 30mm.
Utført i anodisert aluminium.
Beskyttelsesdeksel i front av matningsvogn.
Inkludert slipeapparat.
Yttermål: 575 x 685 xh 650mmm. Vekt: 72 kg.
230V/1-fas. 0,82 kW.
350/AVV Commercial gavity-feed slicer, Ø 350 mm (14") "automatic"
- For each and every product such as ham, sausage, raw meat, cheese.
- Automatic carriage motion with variable speed control (it can be used manually as well).
- Independent controls for carriage motion and blade.
- Exclusive designed carriage with a special end weight and an adjustable vertical product fence to provide stability and advance products evenly.
- Stainless steel base.
- Gravity-feed, 35° inclination (a blade extractor comes standard).
- Max. cutting capacity: 270xh230 (Ø 255 mm), slice thickness: 0-30 mm.
- 50 mm gap between blade and body.
Info: all TOP Line slicers come with Bordeau knobs and handles!
Main Specifications:
- Stylish and performing, sanitary polished and anodized aluminium alloy, hardened, chromed stainless blade, permanent tapered blade ring guard and interlocked blade guard (100% safe).
- Reinforced gauge plate, removable slider guard.
- Carriage sliding on stainless bearings for an easy and quiet operation, polished, chromed and hardened sliding bar, vulcanized rubber carriage buffers, a plexiglass hand guard comes standard.
- End weight conceived for all shapes, even the smallest.
- Stainless steel screws (not visible) and deflector.
- Fan-cooled motor (available 400V/3 or 230V/3).
- Bottom enclosure panel.
- Transmission pulley protected with a retaining ring.
- 24V, IP54 keypad enclosure with IP67 waterproof ON/OFF buttons. NVR (No-Voltage Release) to prevent accidental restart after power failure.
- Dual-action built-in sharpener with protection bottom enclosure.
- Adjustable feet.
- Machine complying with the current CE standards.
Important: easy and safe cleaning thanks to:
1°) Rounded design, no sharp edges and visible screws.
2°) Wide gap between blade and body.
3°) Removable carriage system with gauge plate protecting blade edge at default slice thickness setting below "0".
4°) Removable blade guard.
5°) Permanent tapered blade ring guard.
mm (BxDxH) : 575x685xh650
kW : 0,82
Hp : 0.64
Volt : 230/1N 50Hz
kg : 72
M³ : 0,57
